USB 32Ch Servo Motor Controller Board, support PS2 controller WIFI V7.2 support online upgrade firmware perfectly now, it means that in the future if there is a new function, the user can upgrade easily, so as to ensure the user has the latest firmware.
Up to 32 servo motors can control at the same time, either by using a software on a PC, or UART communication ( TTL serial port) of MCU (Arduino, 51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering. You can also download instructions to the servo motor controller for offline operation.
The biggest advantage is that you can use the computer software to control the robot or control your servo steering. It can control 32 servo motors at the same time, with high precision (1 μs), and adopt the 32-bit original package CPU, internal integration USB communication interface, high stability, and precision.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsB
| General Specification | |
| Operating Voltage | 5V |
| CPU voltage | 3.3V |
| Servo motor input voltage | 4.2-7.2V |
| CPU | 32 Bits |
| Baud rate (USB) | 115200 |
| Baud rate (Bluetooth, UART) | 9600 |
| Storage Flash capacity | 16M |
| Mode to choose | 4 types |
| Simultaneously controlling servo number | 32 channel |
| Max action groups | 256 groups |
| Communication | UART |
| Shipment Weight | 0.06 kg |
| Shipment Dimensions | 10 × 6 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Torobot 32 Channel USB UART Servo Motor Controller Manual

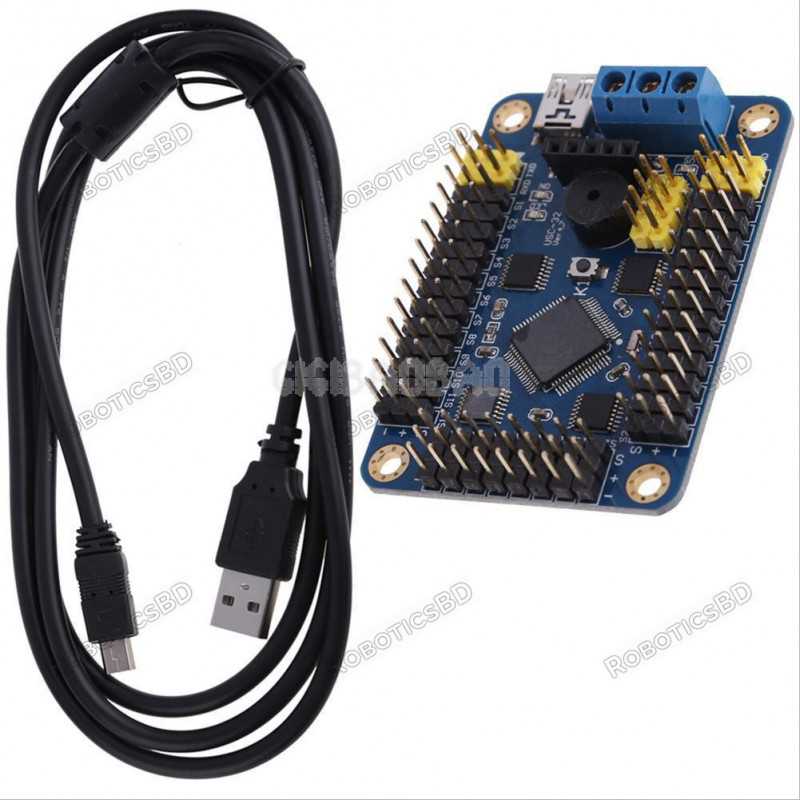

1 x Torobot 32 Channel USB UART Servo Motor Controller
1 x USB to Micro USB Cable-0.5 Meter.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Torobot 32 Channel USB UART Servo Motor Controller in Bangladesh is BDT 3,345 You can buy the Torobot 32 Channel USB UART Servo Motor Controller at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
