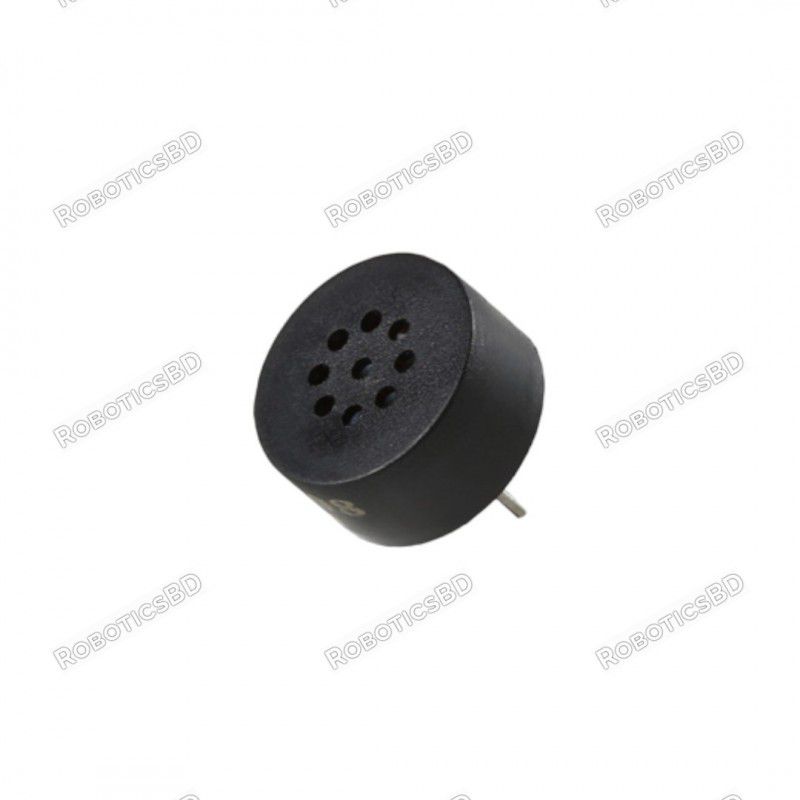

This 15mm through-hole speaker is a great solution for adding sound to your DIY electronics projects where space is limited. The small size makes it ideal for applications like user interfaces, simple sound effects, or basic music playback within the 2kHz range. This speaker features through-hole mounting for convenient integration into your PCBs. With a 0.5W power handling capacity, it delivers adequate sound output for close-range listening. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Diameter | 15mm |
| Depth | 7.5mm |
| Input Power | Min. 0.3W, Max. 0.5W |
| Impedance (3kHz, 1V) | Min. 6.8Ω, Typ. 8Ω, Max. 9.2Ω |
| Resonant Frequency (1V) | Min. 1360Hz, Typ. 1700Hz, Max. 2040Hz |
| Response Range | Up to 20,000Hz (limited audibility above 2kHz) |
| Distortion (3kHz, 0.3W) | 10% |
| Magnet Size | Ø6.5 x 1.5 mm |
| Operating Temperature | -20°C to 55°C |
| Weight | 2.0g |
| Material | PBT + 20% Glass Fiber |
| Washable | Yes |
| RoHS Compliant | Yes |
| Hand Soldering Specs | 350°C ± 5°C for 3 seconds |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 5 x 5 x 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Through-Hole Speaker 15mm diameter - 2kHz range
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Through-Hole Speaker 15mm diameter - 2kHz range in Bangladesh is BDT 60 You can buy the Through-Hole Speaker 15mm diameter - 2kHz range at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
