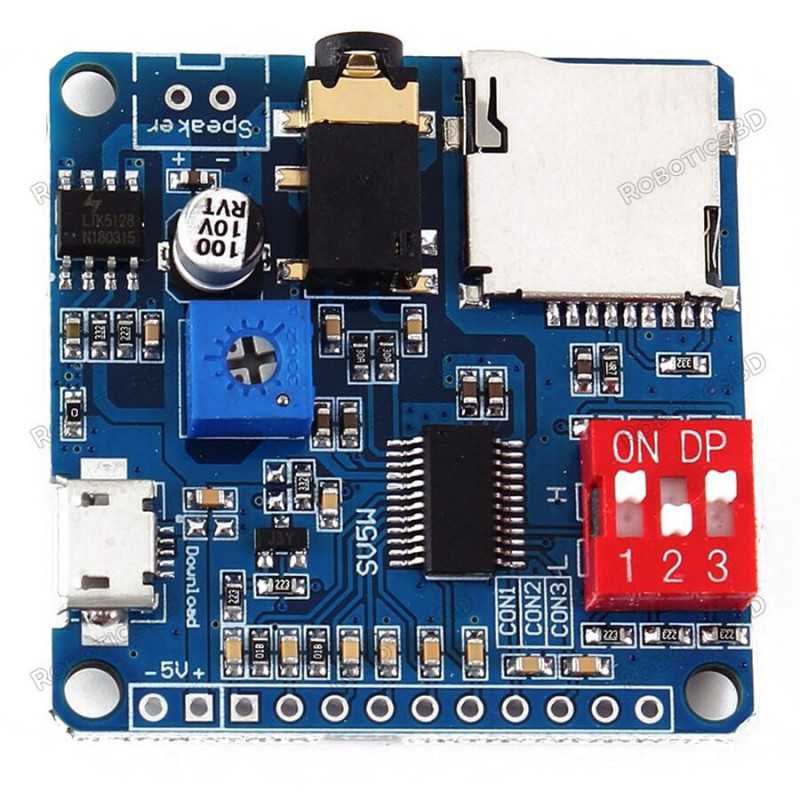

DY-SV5W,it is an independently developed smart sound module. It integrates IO segment trigger, UART serial port control, ONE_line single bus serial port control, standard MP3 and other 7 working modes, simple DIP switch setting; 5W class D power amplifier, direct drive 4Ω, 3 ~ 5W speakers; Support MP3, WAV decoding format, maximum support 32G TF card storage, Can connect the computer with USB data cable to update TF card to store audio files. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
| General Specification | |
| Manufacturer | China |
| Product Category | Sound and Amplifier Modules |
| Sherry | DY-SV5W |
| Decoding | MP3 and WAV decoding |
| Sampling Rate (KHz) | 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48 |
| DAC Output | 24bit |
| Dynamic Range | 90dB |
| SNR | 85dB |
| File System | FAT16 / FAT32 |
| TF Card | Max 32G |
| Drivable | 5 W class D amplifier by 4 ~ 8Ω speaker |
| UART | Play 65535 pieces of music with UART control protocol; Play, Pause, Music selection, VOL / - and so on can be controlled. |
| Communication Baud Rate | 9600bps |
| Number of Music Pieces | By triggering the G, 255 music tracks can be played. |
| One_line | Play music, Play, Pause, Select music, VOL / - and so on can be controlled by the One_line control protocol. |
| Input Voltage | 5V DC |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 5 × 4 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x DY-SV5W Audio Playback MP3 Module
The latest price of DY-SV5W Audio Playback MP3 Module in Bangladesh is BDT 750 You can buy the DY-SV5W Audio Playback MP3 Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
