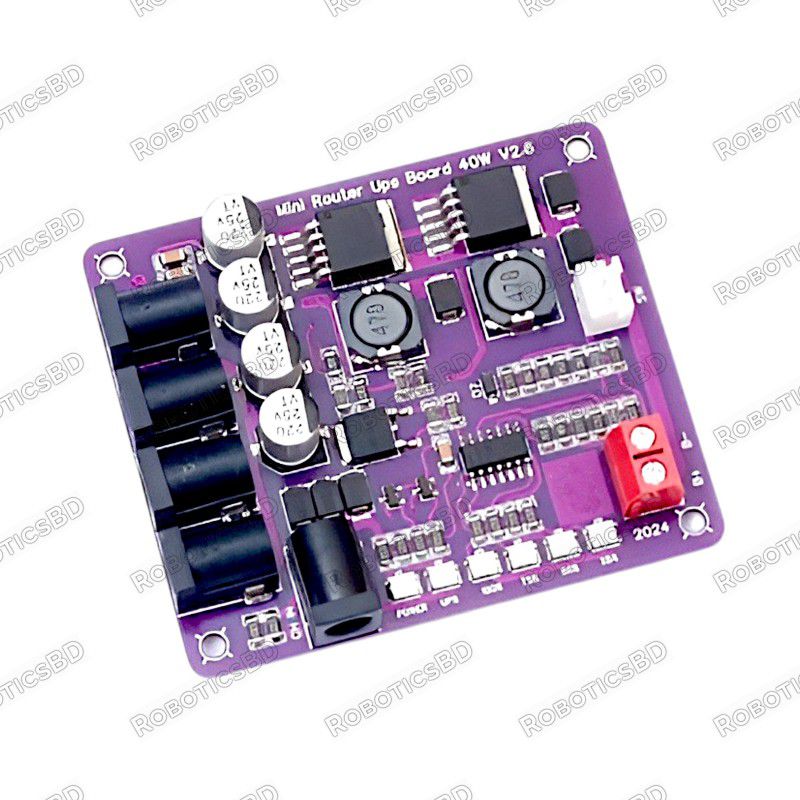

The Mini Router UPS Board 40W V2.6 is a compact yet powerful uninterruptible power supply module built to keep your networking and small electronics devices running during power outages. Featuring a total output capacity of up to 47.5W and four versatile output ports (12V, 9V, and 5V), this board ensures seamless operation across a variety of devices. It is optimized for use with a 3S LiPo 18650 battery (11.1V nominal), with built-in protections including short circuit, high voltage, output overvoltage, and thunder surge. The unit provides high-precision voltage regulation (±0.05V) and an impressive 99% output accuracy. With a user-friendly LED battery level display and fully SMD-based construction, the Mini Router UPS Board is the ideal choice for compact UPS solutions in sensitive electronics, networking setups, or embedded systems. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Multi-Port Output – Provides four power outputs: 2x 12V 1.5A, 1x 9V 2A, and 1x 5V 2A
High Output Accuracy – 99% voltage output precision with ±0.05V tolerance
Smart Battery Management – Supports 3S 11.1V LiPo battery with low voltage and full charge control
Comprehensive Safety – Equipped with short circuit, polarity, overvoltage, thunder, and high-voltage protection
Real-Time Battery Monitoring – LED indicators show battery levels at 100%, 75%, 50%, and 25%
Compact and Reliable Design – Constructed with all SMD components for efficient performance and durability
Universal Compatibility – Ideal for routers, modems, embedded systems, and small electronics
Thunder Protection – Shields connected devices from surge-related damage
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
WiFi Routers & Modems – Keep your internet running during power failures
Embedded Systems – Power development boards and microcontroller setups
CCTV Cameras – Maintain surveillance system uptime
Portable Electronics Projects – Backup power for low-power gadgets or sensors
IoT Installations – Suitable for off-grid or remote monitoring setups
Battery-Backed Prototyping – Reliable power during testing and prototyping phases
Network Switches & Repeaters – Extend uninterrupted operation for small-scale networking devices
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Max Output Power | 47.5W |
| Output Ports | Port 1: 12V 1.5A, Port 2: 12V 1.5A, Port 3: 9V 2A, Port 4: 5V 2A |
| Input Voltage Range | 12.6V – 13.0V (2A–5A) |
| Battery Type | 3S LiPo 18650 (11.1V nominal) |
| Full Battery Voltage | 12.6V |
| Battery Low Voltage Cutoff | 10.5V |
| Voltage Accuracy | 99% with ±0.05V tolerance |
| Battery Indicator | 100%, 75%, 50%, 25% |
| Protections | Short Circuit, High Voltage, Overvoltage, Thunder, Polarity |
| Components | All SMD |
| Board Version | V2.6 |
| Shipment Weight | 0.034 kg |
| Shipment Dimensions | 10 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Mini Router UPS Board 40W V2.6
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Mini Router UPS Board 40W V2.6 in Bangladesh is BDT 685 You can buy the Mini Router UPS Board 40W V2.6 at best price from our RoboticsBD or visit RoboticsBD Office.
|
