LCD Screen | 120 Levels Adjustment | 18650 Battery Spot Welding Machine
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

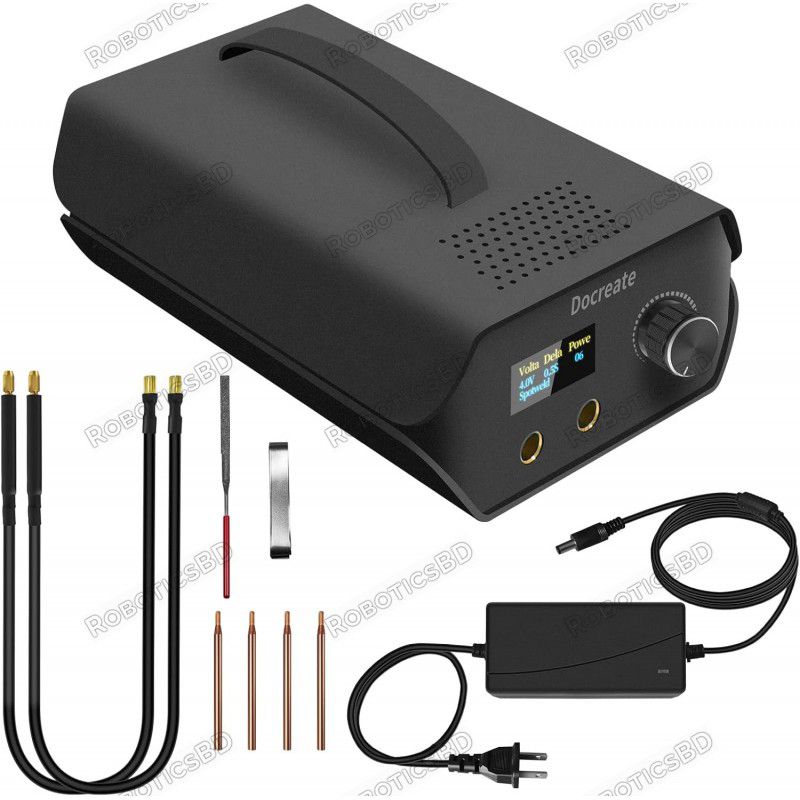

The Docreate Farad Capacitor Portable Mini Spot Welder is a high-performance spot welding machine designed for battery pack assembly, nickel strip welding, and metalwork applications. Equipped with a powerful 3000F Farad capacitor, this spot welder delivers stable and efficient welding performance.
Featuring an LCD screen, it allows users to monitor capacitor voltage and settings in real time. The intelligent control system ensures precision welding with automatic mode, output size adjustment, delay settings, and circuit board temperature monitoring for added safety and efficiency.
With 120 adjustable power levels, the Docreate Spot Welder is highly customizable for different materials, ensuring optimal welding results. The detachable welding needles and portable handle design make it user-friendly and easy to operate, making it ideal for DIY enthusiasts, battery pack makers, and professional welders.
✅ LCD Screen Display – Clearly displays capacitor voltage and welding parameters for precision control.
✅ Farad Capacitor for Stable Welding – Features two 2.7V 3000F ultra-large capacitors, ensuring powerful and consistent welding performance.
✅ 120-Level Adjustable Power Output – Fine-tune welding power from 1-120 levels to match different materials and thicknesses.
✅ Fast & Efficient Performance – High-quality MOS tube provides precise output control for strong and reliable welds.
✅ Multiple Welding Modes – Supports automatic working mode, delay settings, and high-temperature alerts for enhanced safety.
✅ Detachable Welding Needles – Comes with four welding needles that can be easily replaced.
✅ Portable & Compact Design – Features a 360° master knob switch and ergonomic handle design for convenient handling.
✅ Wide Application Range – Suitable for 18650 battery welding, power tool battery repair, stainless steel, and nickel strip welding (0.1-0.3mm).
Manufacturer: Docreate
Model: Spot Welder 008
Power Source: AC/DC
Battery Cell Type: Lithium Polymer (Included)
Adjustable Power Levels: 1-120 Steps
Welding Time Adjustment: 0.5-7 seconds
Capacitor Type: Farad Capacitor 3000F
Welding Wire: 16 Square Copper Wire
Included Components: Quick Release Pen
Product Weight: 4.42 pounds (2 kg)
Dimensions: 10.35 x 7.8 x 3.7 inches
Head Style: 120 Gears 3000F
Country of Origin: China
✅ Battery Pack Assembly – Ideal for 18650, 21700, and lithium-ion battery spot welding.
✅ Power Tool Battery Repair – Used for repairing and assembling power tool battery packs.
✅ Metal & Nickel Strip Welding – Supports 0.1mm-0.3mm nickel-plated and stainless steel welding.
✅ Electronics & DIY Projects – Perfect for custom electronic repairs, hobbyists, and professional welding applications.
✅ Automotive & Industrial Applications – Suitable for welding metal sheets and automotive battery packs.
✅ Precision Welding with LCD Display – Real-time monitoring of voltage and settings for accurate spot welding.
✅ Powerful 3000F Farad Capacitor – Provides high current output for strong and stable welds.
✅ Customizable Welding Power – 120-step power adjustment ensures perfect welding for different materials.
✅ Safe & Intelligent Operation – Built-in temperature monitoring and delay settings prevent overheating.
✅ Compact & Portable Design – Lightweight and easy to carry, perfect for home and professional use.
✅ Easy to Use – 360° Master Knob Switch and quick-release pen design make operation smooth and efficient.
The Docreate Farad Capacitor Portable Mini Spot Welder - 3000F, 120 Levels is the perfect tool for battery welding, DIY projects, and professional applications.
Buy Now & Get Precise, Efficient, and Reliable Spot Welding!
The latest price of Docreate Farad Capacitor Portable Mini Spot Welder 3000F 120 Adjustable Levels in Bangladesh is BDT 17,990 You can buy the Docreate Farad Capacitor Portable Mini Spot Welder 3000F 120 Adjustable Levels at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
