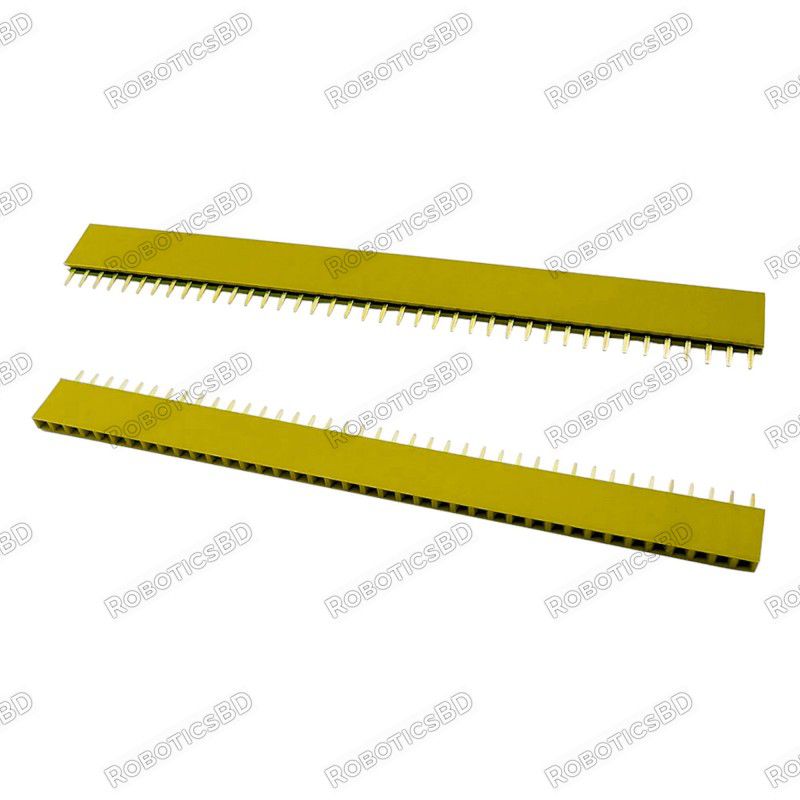

This Female Pin Header Single Row provides a convenient solution for connecting printed circuit boards (PCBs) using through-hole mounting. Featuring a standard 2.54mm pitch and a single row of 40 female pins, this header strip offers easy integration and compatibility with various electronic components. The phosphor bronze contact material ensures long-lasting durability and reliable electrical connections. This female pin header is ideal for a wide range of electronic projects where secure PCB connections are required. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Connector Type | Female Pin Header |
| Number of Rows | 1 |
| Number of Pins | 40 |
| Pitch | 2.54mm |
| Mounting Type | Through-Hole (DIP) |
| Contact Material | Phosphor Bronze |
| Contact Resistance | 20mΩ |
| Insulation Material | PBT UL 94V-0 |
| Insulation Resistance | ≥1000MΩ |
| Length | 51mm |
| Width | 2mm |
| Height | 7mm |
| Weight (each) | Approx. 1g |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 12 x 8 x 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Female Pin Header 2.54mm Pitch - Red
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Female Pin Header 2.54mm Pitch - Yellow in Bangladesh is BDT 20 You can buy the Female Pin Header 2.54mm Pitch - Yellow at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
