The Aluminum GT2 Timing Pulley with 20 teeth and an 8mm bore is a precision-machined component specifically designed for linear motion systems, especially in 3D printers. It plays a vital role in converting the rotational motion of stepper motors into accurate linear motion along the X and Y axes using GT2 timing belts. Engineered from durable and lightweight aluminum, this pulley ensures smooth, slip-free operation by perfectly meshing with 6mm GT2 timing belts.
Product Description:

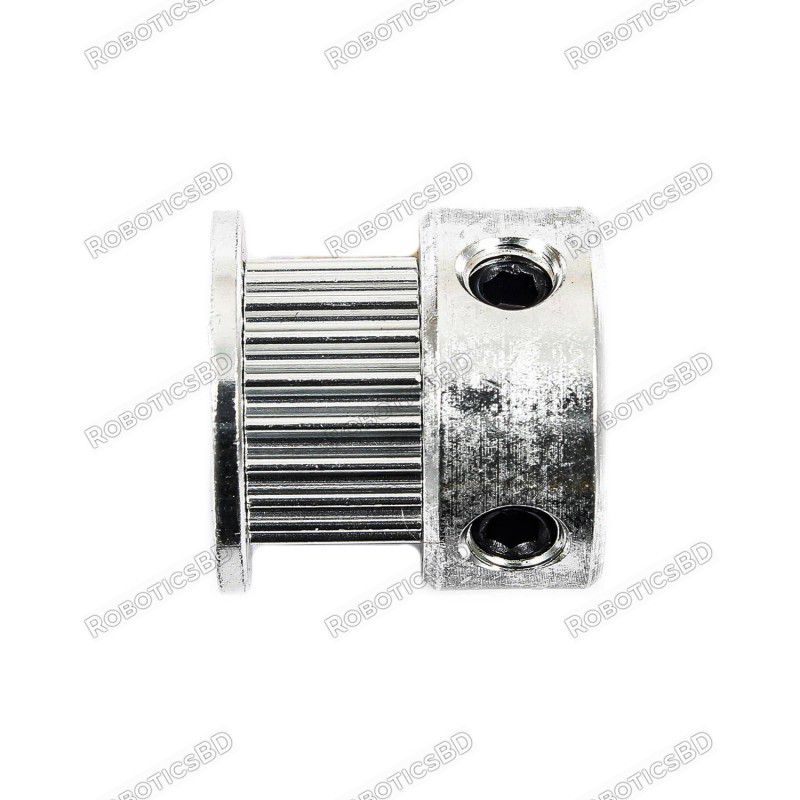

The Aluminum GT2 Timing Pulley with 20 teeth and an 8mm bore is a precision-machined component specifically designed for linear motion systems, especially in 3D printers. It plays a vital role in converting the rotational motion of stepper motors into accurate linear motion along the X and Y axes using GT2 timing belts. Engineered from durable and lightweight aluminum, this pulley ensures smooth, slip-free operation by perfectly meshing with 6mm GT2 timing belts.
Its robust construction, 8mm inner bore, and dual M4 set screw locking mechanism offer reliable performance and easy mounting on standard stepper motor shafts. With a 2mm tooth pitch and 7.4mm tooth width, this pulley ensures highly precise positioning and repeatability, making it ideal for high-resolution 3D printing and CNC applications.
Key Features:
20 teeth for smooth belt engagement
2mm pitch ideal for high-precision motion
8mm inner diameter fits NEMA 23 and similar stepper motors
7.4mm teeth width, perfect for 6mm GT2 timing belts
Durable aluminum construction for lightweight strength
Dual M4 set screws for secure shaft attachment
Height: 16mm
Technical Specifications:
Material: Aluminum
Pitch: 2mm
Number of Teeth: 20
Inner Bore Diameter: 8mm
Pulley Height: 16mm
Teeth Width: 7.4mm
Fixed Mode: 2 x M4 set screws
Compatible Belt: GT2 6mm Timing Belt
Applications:
3D printer linear motion systems (X/Y axis)
CNC machines and laser cutters
Robotics and automation mechanisms
Stepper motor timing belt drive systems
Package Includes:
1 x GT2 20-Tooth Aluminum Timing Pulley (8mm Bore)
2 x M4 Set Screws (Pre-installed)
Why Choose This Pulley?
Designed for stability, precision, and ease of use, this aluminum GT2 timing pulley is an essential upgrade for ensuring smooth, accurate movement in any belt-driven system. Enhance your 3D printer or CNC project with reliable performance and long-lasting durability.
Upgrade your motion control system today with this high-performance GT2 timing pulley!
The latest price of Aluminum GT2 Timing Pulley – 20 Teeth, 8mm Bore in Bangladesh is BDT 161 You can buy the Aluminum GT2 Timing Pulley – 20 Teeth, 8mm Bore at best price from our RoboticsBD or visit RoboticsBD Office.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
Product Images are shown for illustrative purposes only and may differ from the actual product. |
