Seven segment displays are used in many days today’s consumer devices like microwave ovens, washing machines, and air conditioners. They are a simple but effective way to display numerical data like time or quantity. Since they are made out of LEDs, they are a low-cost option for displaying information. They are widely appreciated for its features like accuracy, clarity and optimum functionality. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Bright Red LED chip, which is made from AlGaAs on GaAs substrate
- Blackface and RED LED segments
- Type: Common cathode
- No. of Pins: 12
- Low Current Consumption
- High Brightness
- Easy to Use with PCB Mounting as well as on Breadboard.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Display Type |
Seven segments |
| Configuration |
Common Cathode |
| No. of Pins |
12 |
| LED colour |
RED |
| No. of Digits |
4 Digits |
| Digit Height |
14mm |
| Operating current |
10mA |
| Wavelength |
640nm |
| Length (mm) |
50 |
| Width (mm) |
19 |
| Height (mm) |
7 |
| Weight (gm) |
9 |
| Shipment Weight |
0.014 kg |
| Shipment Dimensions |
4 × 4 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:

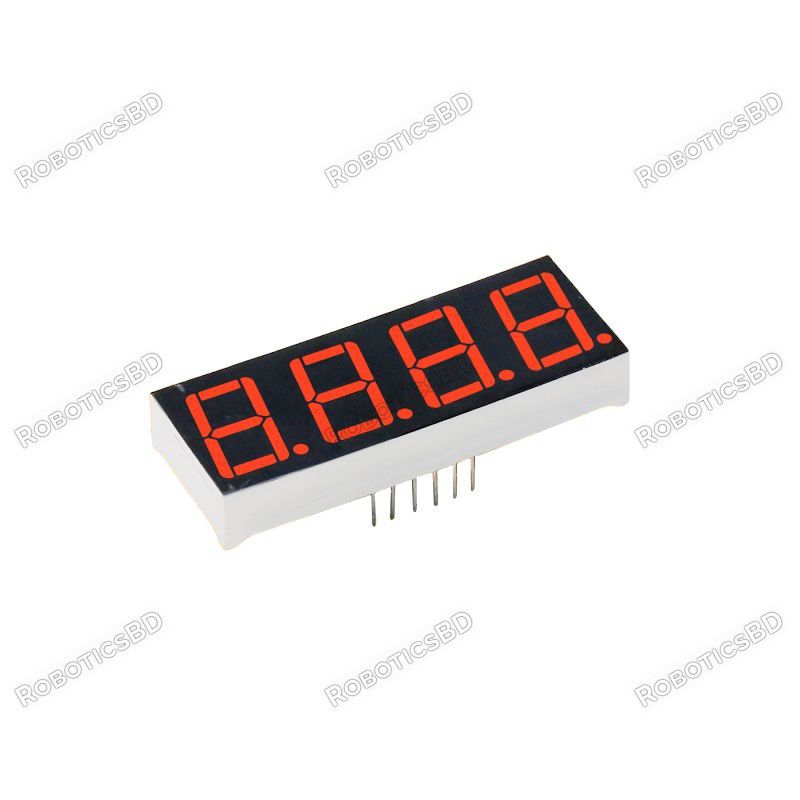

1 x 0.56 Inch 4 Digit 7 Segment LED Displays, Red Color.
