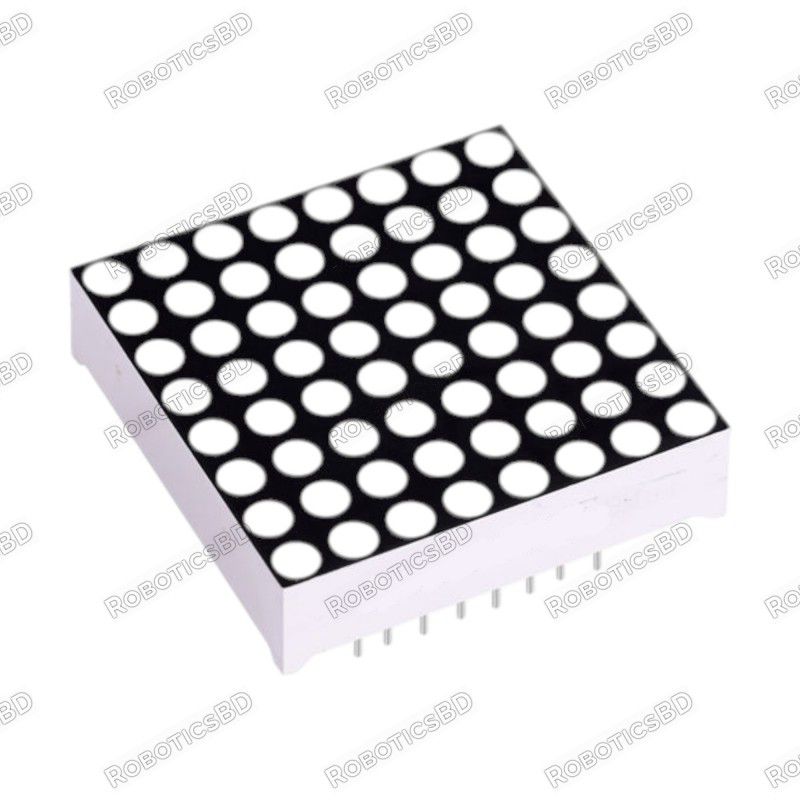

The 8×8 LED matrix module is a very useful and low-cost way to add display in your electronic circuits. It has 16 pins to achieve a different combination to ON/OFF the LEDs. It fits properly into any standard solderless breadboard.. It is a Great display for electrical and test equipment. The diameter of the Led is about 3mm with common Anode configuration which emits Red color/Green Color. The Exact dimensions of this module are shown in the Schematic image.
These Displays are always in high demand in the DIY community as well as in Industrial Projects due to their multipurpose uses and cheap cost. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| LED Size | 3.7 mm |
| Type | Common Anode |
| Emitted Colour | Red/Green |
| Face Color | Black |
| Wavelength | 625 ~ 630nm |
| Forward Voltage | 2.1V ~ 2.5V |
| Forward Current | 20mA |
| Operating Temperature (°C) | 40 to 85 |
| Length (mm) | 38 |
| Width (mm) | 38 |
| Height (mm) | 8 |
| Weight (gm) | 6 each |
| Shipment Weight | 0.02 kg |
| Shipment Dimensions | 6 × 6 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 8*8 LED matrix module common anode of LED matrix.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 8x8 Dot Matrix LED Display - 38 x 38 mm Panel in Bangladesh is BDT 95 You can buy the 8x8 Dot Matrix LED Display - 38 x 38 mm Panel at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
