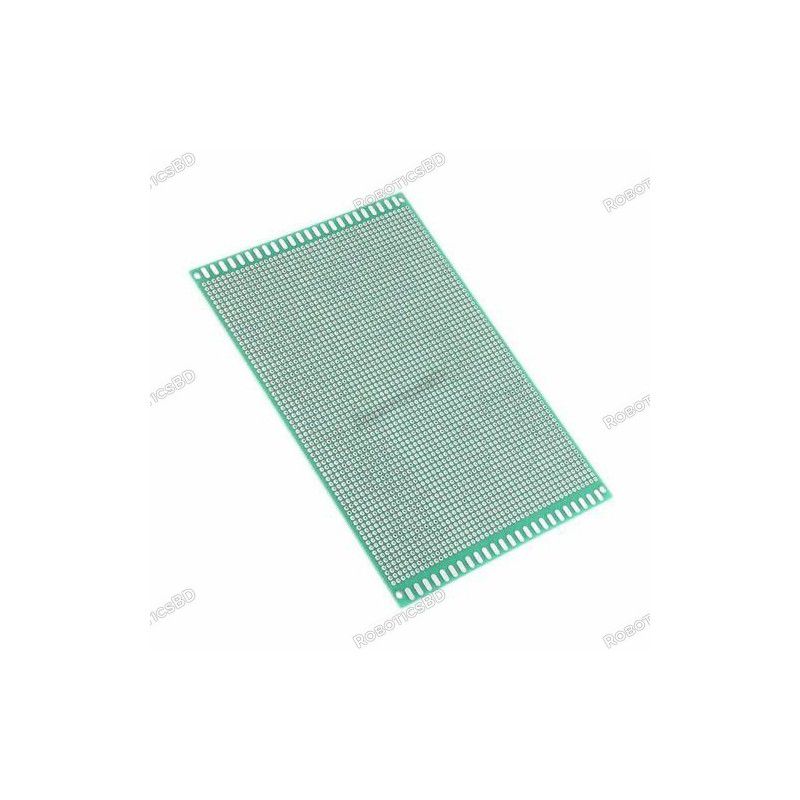

This is a 10 x 22 cm Universal PCB Prototype Board Double-Side High-quality universal prototyping board with standard 2.5mm (0.1 inches) spacing through holes. High-quality 10 x 22 cm FR4 material, Double-sided, HASL, CNC drilled. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
| General Specification | |
| Base Material | FR4 |
| Copper Thickness (mm) | 1-4 oz |
| Min. Hole Size (mm) | 2.54 |
| Length (mm) | 100 |
| Width (mm) | 220 |
| Board Thickness | 1.6 |
| Weight (gm) | 120 |
| Shipment Weight | 0.043 kg |
| Shipment Dimensions | 16 × 13 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x Double Sided FR-4 PCB Prototype Board 9x15cm
The latest price of Double Sided FR-4 PCB Prototype Board 10x22cm in Bangladesh is BDT 330 You can buy the Double Sided FR-4 PCB Prototype Board 10x22cm at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
