Advanced FMCW Radar Detection | Wi-Fi & BLE Connectivity | High-Sensitivity Motion Sensing
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

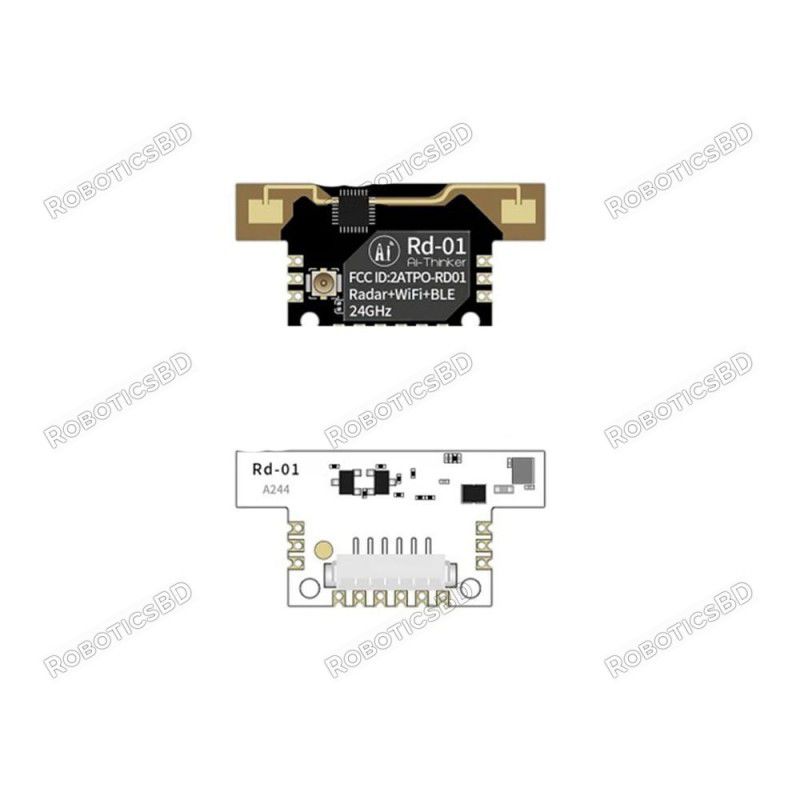

The Ai-Thinker RD-01 Human Presence Sensor is a high-precision radar module designed for accurate human presence detection in smart home, security, and automation applications. Leveraging FMCW (Frequency Modulated Continuous Wave) radar technology, the sensor can detect both motion and micro-motion states, making it superior to traditional PIR motion sensors.
This module integrates Wi-Fi 802.11 b/g/n and Bluetooth 5.0 for wireless connectivity, allowing seamless integration into IoT environments. It enables real-time transmission of detection data, making it ideal for automation systems, security monitoring, and smart building solutions.
The Ai-Thinker RD-01 is a compact, energy-efficient, and highly customizable presence detection solution with GPIO, UART, ADC, PWM, I2C, and SPI interfaces for versatile connectivity.
✔ Advanced FMCW Radar Technology – Detects motion & stationary human presence accurately
✔ Wi-Fi & Bluetooth 5.0 – Provides real-time data transmission & wireless configuration
✔ High Sensitivity & Precision – Senses micro-movements and distance to the target
✔ Wide Frequency Band – Operates at 24GHz radar spectrum with 1GHz modulation bandwidth
✔ Real-Time Configuration – Easily adjust sensing range, sensitivity, delay time via wireless setup
✔ Multiple Interface Support – UART, GPIO, ADC, PWM, I2C, SPI for flexible integration
✔ Ultra-Low Power Consumption – Ideal for battery-powered IoT applications
✔ Compact Design – SMD-12 package with flexible mounting options
| Specification | Details |
|---|---|
| Radar Frequency | 24GHz ~ 24.25GHz |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n & BLE 5.0 |
| Antenna Type | Radar: Onboard |
| Power Supply | 3.0V ~ 3.6V (≥500mA) |
| Operating Temperature | -40°C ~ 85°C |
| Interfaces | UART, GPIO, ADC, PWM, I2C, SPI |
| Serial Port Speed | Default 256000 bps |
| Security Support | WPS, WEP, WPA, WPA2 Personal, WPA2 Enterprise, WPA3 |
| Default Flash Storage | 2MB |
| Dimensions | 35mm × 18mm × 3.6mm |
The RD-01 sensor uses FMCW radar technology to detect human presence in an indoor area. It differentiates between:
✅ Moving Objects – Detects walking or movement within a space
✅ Stationary Presence – Identifies individuals remaining in an area without movement
✅ Distance Calculation – Measures the proximity of the detected object
The module transmits the detection data in real-time via Wi-Fi & Bluetooth, making it ideal for security monitoring, automation, and smart environments.
The latest price of Ai-Thinker Rd-01 Human Presence Sensor With Wifi & Bluetooth in Bangladesh is BDT 890 You can buy the Ai-Thinker Rd-01 Human Presence Sensor With Wifi & Bluetooth at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
