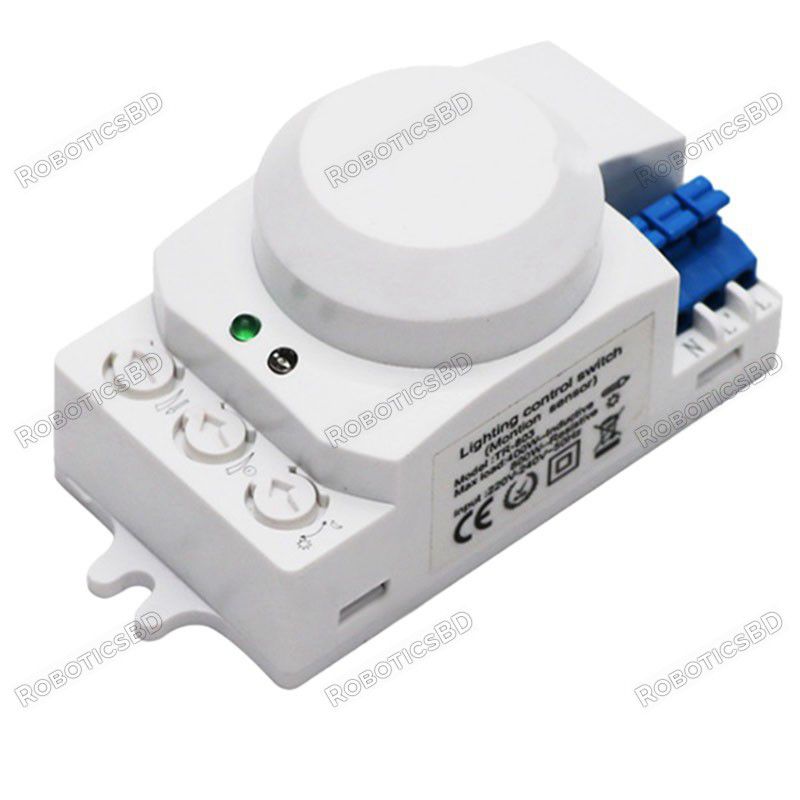

The 5.8GHz HF System LED Microwave Motion Sensor Light Switch is an advanced, energy-saving solution that enhances automation, security, and convenience. Utilizing high-frequency electromagnetic wave technology (5.8GHz CW radar), this sensor detects human motion with a full 360-degree coverage, even through doors, glass, or thin walls. It automatically activates the connected load when motion is detected, making it ideal for lighting control, security systems, and energy management applications.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The 5.8GHz HF System LED Microwave Motion Sensor Light Switch is an advanced, energy-saving solution that enhances automation, security, and convenience. Utilizing high-frequency electromagnetic wave technology (5.8GHz CW radar), this sensor detects human motion with a full 360-degree coverage, even through doors, glass, or thin walls. It automatically activates the connected load when motion is detected, making it ideal for lighting control, security systems, and energy management applications.
Built with durable ABS material, this switch integrates practical features such as adjustable detection distance, ambient light sensitivity, and time delay settings, offering customizable performance to suit a wide range of indoor environments.
360° Detection Coverage: Complete omnidirectional motion detection
Microwave Sensing: 5.8GHz CW radar ensures reliable motion detection even through non-metallic surfaces
Adjustable Detection Range: Set detection distance from 1 to 8 meters (radius)
Day/Night Mode: Automatically adjusts based on ambient light conditions (3–2000 LUX adjustable)
Adjustable Time Delay: Select delay time from 10 seconds to 12 minutes
Energy Efficient: Consumes less than 0.9W of power
Wide Voltage Compatibility: Operates on 220V AC to 240V AC
Durable and Safe: ABS body ensures longevity and safety in use
Easy Installation: Wall or ceiling mounting with a recommended height between 1.5m to 3.5m
| Feature | Specification |
|---|---|
| Power Source | 220V AC – 240V AC |
| Detection Range | 360 Degrees |
| Detection Distance | 1-8 meters (adjustable radius) |
| HF System | 5.8GHz CW Radar, ISM band |
| Ambient Light Sensitivity | 3–2000 LUX (adjustable) |
| Time Delay Range | 10 seconds ±3 seconds to 12 minutes ±1 minute |
| Transmission Power | Less than 10mW |
| Installing Height | 1.5m to 3.5m |
| Power Consumption | 0.9W |
| Detection Motion Speed | 0.6–1.5 m/s |
| Rated Load | 1200W (incandescent lamp) / 300W (energy-saving lamp) |
| Material | ABS |
| Color | White |
Install the sensor in a suitable indoor location (wall or ceiling).
Adjust the detection distance, time delay, and ambient light sensitivity according to your needs.
When a human body moves within the detection field, the sensor automatically triggers the connected load (such as a light).
The load remains active for the preset time, then automatically turns off if no further motion is detected.
Indoor lighting automation
Security and motion detection systems
Office and warehouse lighting control
Garage, stairway, corridor, and hallway lighting
Energy-saving building management
1 x AC 220V Microwave Radar Sensor Switch
Superior motion detection technology with radar-based sensing
Reliable performance through glass, wood, and non-metallic materials
Customizable settings for sensitivity, time delay, and light conditions
Energy-saving and safe, with easy installation and low operating power
Upgrade your lighting control with the 5.8GHz HF System LED Microwave 360 Degree Motion Sensor Light Switch for efficient, automated illumination.
Order now and enjoy hands-free convenience with intelligent motion sensing!
The latest price of 5.8GHz HF System LED Microwave 360 Degree Motion Sensor Light Switch in Bangladesh is BDT 1,080 You can buy the 5.8GHz HF System LED Microwave 360 Degree Motion Sensor Light Switch at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
