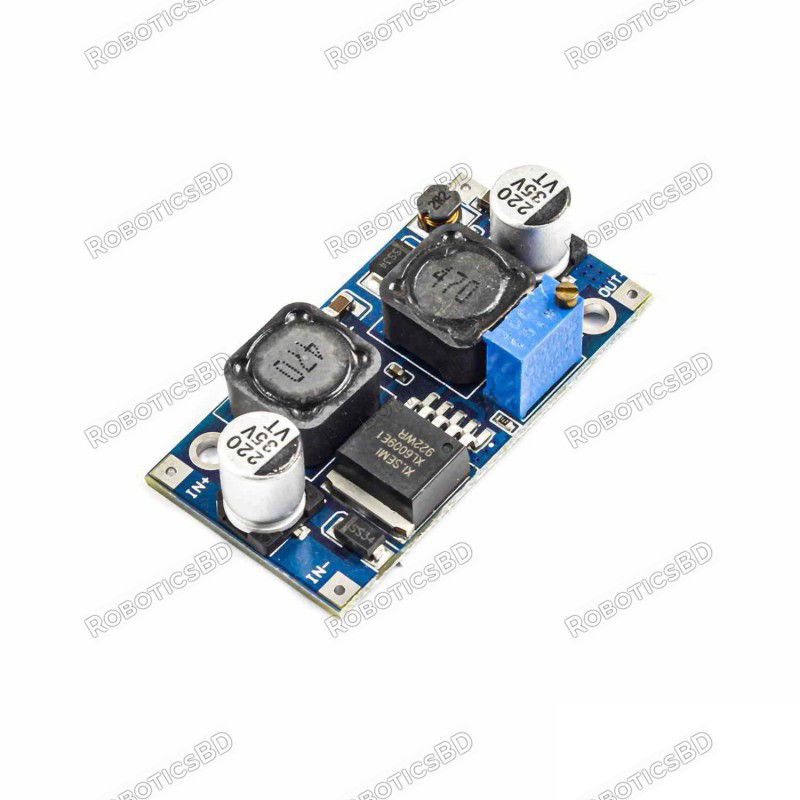

The XL6009 DC-DC Buck Boost Power Module is a high-efficiency voltage regulator that can step up or step down the input voltage while maintaining a constant and adjustable output voltage. This makes it ideal for applications where a stable power supply is required, despite fluctuating input voltages.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The XL6009 DC-DC Buck Boost Power Module is a high-efficiency voltage regulator that can step up or step down the input voltage while maintaining a constant and adjustable output voltage. This makes it ideal for applications where a stable power supply is required, despite fluctuating input voltages.
Equipped with a wide input voltage range of 5V to 32V and an adjustable output voltage from 1.25V to 35V, this module is suitable for automotive applications, battery charging, solar energy projects, and embedded electronics. Its high-efficiency MOSFET switch ensures up to 94% conversion efficiency, making it an excellent choice for power-sensitive projects.
✔ Wide Input Voltage Range – Supports input voltages from 5V to 32V.
✔ Adjustable Output Voltage – Regulates output voltage from 1.25V to 35V.
✔ High Efficiency – Built-in 4A MOSFET switch ensures up to 94% conversion efficiency.
✔ High Switching Frequency – Operates at 400KHz, providing low ripple and high stability.
✔ Automatic Step-Up / Step-Down – Efficiently converts voltage without manual adjustments.
✔ Compact Design – Small form factor allows for easy integration into projects.
✔ Overload & Overheat Protection – Enhances safety and reliability.
| Parameter | Specification |
|---|---|
| Input Voltage | 5V - 32V |
| Output Voltage | 1.25V - 35V (Adjustable) |
| Output Current | Up to 3A (Max) |
| Conversion Efficiency | Up to 94% |
| Switching Frequency | 400KHz |
| No-load Current | 18mA (Varies with input voltage) |
| Load Regulation | ± 0.5% |
| Voltage Regulation | ± 0.5% |
| Output Ripple | 50mV |
| Operating Temperature | -40°C ~ +85°C |
| Module Dimensions | 48mm x 25mm x 14mm (L x W x H) |
✔ Automotive Power Stabilization – Regulates car battery voltage fluctuations (7V to 15V).
✔ Solar Power Systems – Regulates voltage in solar panels and battery charging applications.
✔ Wind Energy Systems – Maintains stable output in wind power generation projects.
✔ Battery-Powered Devices – Provides constant voltage for embedded systems.
✔ Powering Sensors & Microcontrollers – Supplies regulated power to Arduino, ESP32, STM32, and other development boards.
✔ DIY Electronics & Embedded Systems – Ideal for custom power regulation projects.
✅ Wide input voltage range (5V-32V) and adjustable output (1.25V-35V)
✅ Highly efficient power conversion (up to 94%)
✅ Automatic buck-boost regulation for stable voltage
✅ Compact and lightweight design for easy integration
✅ Reliable and durable, with overload and overheat protection
The latest price of XL6009 DC-DC Buck Boost Power Module in Bangladesh is BDT 199 You can buy the XL6009 DC-DC Buck Boost Power Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
