This is a Liquid pH Value Detection Sensor for Arduino, designed for measuring the pH level of liquids.
Need to do proper Calibration before Using.
This is just the converter board no probe is included.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

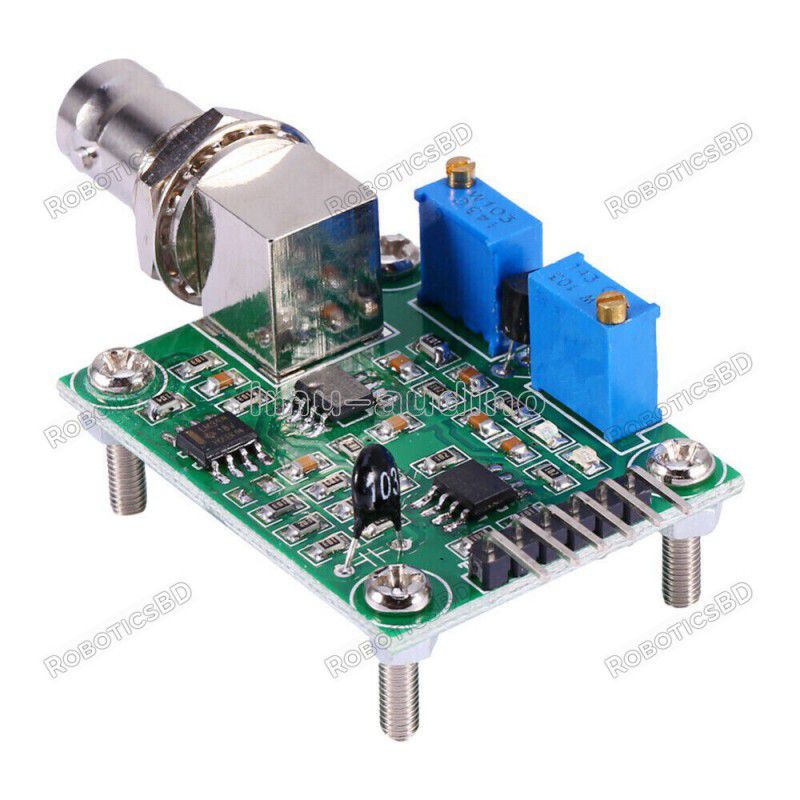

Liquid pH Value Detection Sensor for Arduino
This is a Liquid pH Value Detection Sensor for Arduino, designed for measuring the pH level of liquids.
pH, which stands for “power of hydrogen”, measures the concentration of hydrogen ions in a solution. It is widely used in applications such as water quality testing and aquaculture. The pH scale ranges from 1 to 14, with 7 being considered neutral. A pH value below 7 indicates acidity, while a value above 7 denotes alkalinity or basicity.
The pH sensor features a single cylindrical electrode that connects directly to the input terminal of a pH meter, controller, or any device with a BNC input. The electrode probe provides accurate and reliable readings, delivering almost instantaneous results for precise pH measurement.
Connection Diagram of Liquid pH Value Detection Sensor for Arduino:
Features
Heating voltage: 5±0.2V
Working current: 5-10mA
The detection concentration range: PH0-14
The detection range of temperature: 0-60 centigrade
The response time: ≤ 5S
Stability time: ≤ 60S
Power consumption: ≤ 0.5W
Specification
| Detection Concentration Range | PH0-14 |
|---|---|
| Detection Range of Temperature (°C) | 0 to 60 |
| Response Time (s) | ≤5 |
| Stability Time (s) | ≤60 |
| Power Consumption (W) | ≤0.5 |
| Operating Temperature (°C) | -10 to 50 |
| Working Humidity (%RH) | 95 |
| PCB Size ( L x W ) mm | 42 x 32 |
| Height (mm): | 13 |
| Weight (g): | 20 |
Package Includes
1 x Liquid pH Value Detection Sensor For Arduino
The latest price of pH Sensor Analog Meter Converter Board For Arduino in Bangladesh is BDT 1,550 You can buy the pH Sensor Analog Meter Converter Board For Arduino at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
