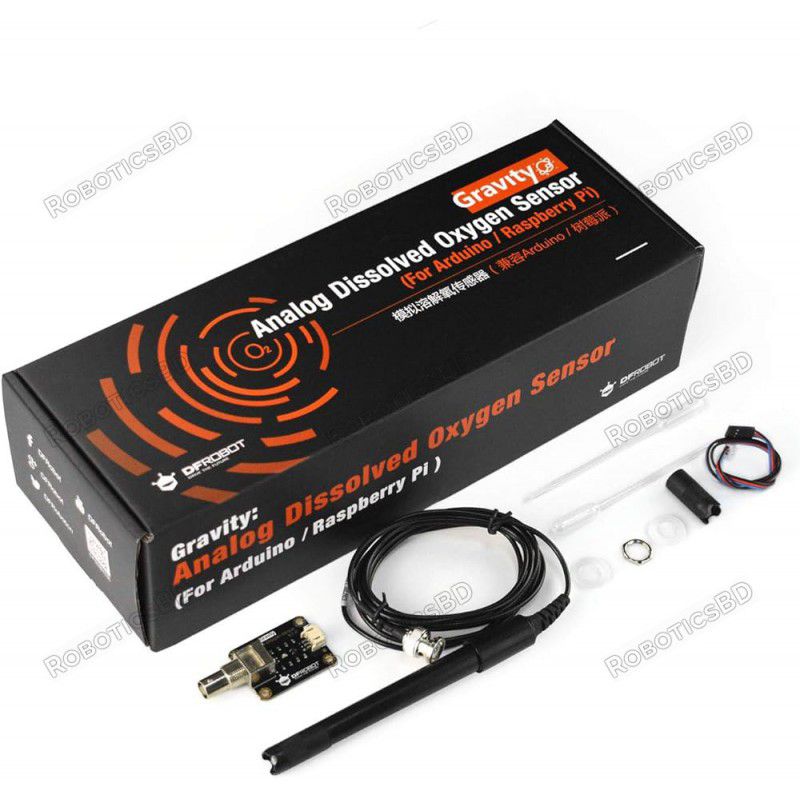

The Gravity Analog Dissolved Oxygen Sensor Kit for Arduino is an essential tool for water quality analysis in applications like aquaculture, environmental monitoring, and research. Featuring a galvanic probe, it eliminates polarization time and provides fast and reliable dissolved oxygen readings. The plug-and-play signal converter board operates at 3.3-5.5V, making it compatible with popular microcontrollers like Arduino, ESP32, and Raspberry Pi. With replaceable membrane caps and filling solution, the sensor is cost-effective and easy to maintain. This kit ensures precise measurements and helps maintain optimal water quality for aquatic life. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
SPECIAL INSTRUCTION: Due to the International Import and Export Policy, the corrosive solution (acid & alkaline solution) cannot be delivered by air transportation. The filling solution is not included in the kit. You have to purchase it from the local shop or deploy the solution by yourself, refer to WiKi FAQ-Q4. It can’t work without a filling solution! Please be cautious with the purchase!
Note
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Probe Type | Galvanic Probe |
| Detection Range | 0~20mg/L |
| Response Time | 98% full response within 90 seconds (25℃) |
| Pressure Range | 0~50PSI |
| Electrode Service Life | 1 year (normal use) |
| Maintenance Period | Membrane Cap: 1-2 months (muddy water), 4-5 months (clean water) |
| Filling Solution Replacement | Once every month |
| Cable Length | 2 meters |
| Probe Connector | BNC |
| Operating Voltage | 3.3~5.5V |
| Output Signal | 0~3.0V |
| Signal Connector | Gravity Analog Interface (PH2.0-3P) |
| Dimension | 42mm x 32mm |
| Shipment Weight | 0.145 kg |
| Shipment Dimensions | 16 x 6 x 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Introduction: Since measuring the parameter of water quality is a complex task, so measuring the dissolved oxygen in water is also not an easy task. That is why the Dissolved Oxygen Meter (DO Meter) available in the market is very expensive. That is why it is important to make your own Dissolved Oxygen Meter. So the Gravity Analog Dissolved Oxygen Sensor from DFRobot is one of the most popular and best Dissolved Oxygen Sensors that are available in the market.
This project will interface Gravity Analog Dissolved Oxygen Sensor with Arduino Board and 0.96″ OLED Display. Firstly, preparing the DO Sensor by filling the 0.5N Sodium Hydroxide Solution, then preparing the sensor for testing. Once the sensor is prepared, go through the Arduino Dissolved Oxygen Sensor calibration code & calibrate the sensor. And then finally making your own Dissolved Oxygen Meter & display the dissolved Oxygen value in OLED Display.
KnowFlow is the name of this water quality monitoring device, based on Arduino Uno. It can automatically monitor 5 parameters of water: pH, Temperature, Dissolved Oxygen, Electronic Conductivity, ORP.
Central Control Unit: Arduino Uno (DFRobot Bluno in this case) and Expansion Shield (DFRobot Expansion Shield V7.1 in this case)
Water Sensors: pH (pH probe and pH circuit board); EC (EC probe and EC circuit board); ORP (ORP probe and ORP circuit board); Temperature (temperature probe and temperature circuit board); Dissolved Oxygen (DO probe, BNC and circuit board); real time clock circuit board
Data Storage: Micro-SD module, Micro SD card
Fit and fix: mounting plate, water proof box( 200mm_150mm_75mm), water proof joint
Other parts: Cables (Wires), bread board, bolts and nuts, screws, battery, double-sided adhesive, write on tape, small wrench, spiral cable wrap
Introduction: Are you working on a aquaponics or hydroponics project? Or you simply have a fish tank and want your fish to be happy? If yes, you'll probably need a way to measure dissolved Oxygen level.
1 x Gravity Analog Dissolved Oxygen Sensor / Meter Kit for Arduino
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Gravity Analog Dissolved Oxygen Sensor / Meter Kit for Arduino in Bangladesh is BDT 31,250 You can buy the Gravity Analog Dissolved Oxygen Sensor / Meter Kit for Arduino at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
