Product Description:

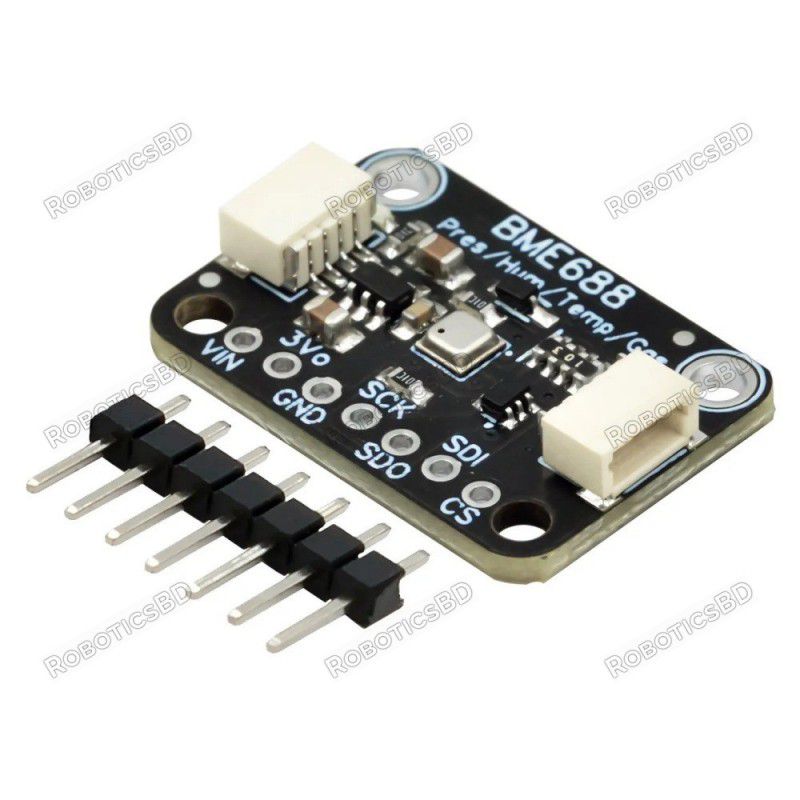

The BME688 is a powerful 4-in-1 environmental sensor module featuring temperature, humidity, barometric pressure, and advanced gas sensing capabilities. This sensor is based on Bosch’s BME68X series and includes support for artificial intelligence (AI) applications such as gas classification and odor analysis. Ideal for smart home systems, weather monitoring, air quality detection, and embedded AI projects.
Key Features:
Equipped with BME688 sensor for precise measurement of:
Temperature
Humidity
Atmospheric pressure
VOC and VSC gas concentration
Supports I2C (with configurable address and multi-device bus linking)
Supports SPI communication via CS pin selection
Built-in logic level shifter, compatible with 3.3V and 5V systems
Reliable performance with factory calibration and long-term stability
Integrated MOX gas sensor for air quality and odor analysis
Perfect for AI-based air quality indexing and machine-learning applications
Technical Specifications:
| Model | BME280 | BME680 | BME688 |
|---|---|---|---|
| Measurement | Pressure, Temperature, Humidity | Pressure, Temp, Humidity, VOC detection | Pressure, Temp, Humidity, VOC & VSC detection |
| Interface | I2C and SPI | I2C and SPI | I2C and SPI |
| Temperature Range | -40 to 85°C | -40 to 85°C | -40 to 85°C |
| Temperature Accuracy | ±1.0°C (0–65°C) | ±0.5°C (0–65°C) | ±0.5°C (0–65°C) |
| Humidity Range | 0 to 100% RH | 0 to 100% RH | 0 to 100% RH |
| Humidity Accuracy | ±3% RH | ±3% RH | ±3% RH |
| Pressure Range | 300 to 1100 hPa | 300 to 1100 hPa | 300 to 1100 hPa |
| Pressure Accuracy | ±1.0 hPa (0–65°C) | ±0.6 hPa (0–65°C) | ±0.6 hPa (0–65°C) |
| Gas Detection | – | VOC | VOC and VSC |
How to Use:
Connect via I2C or SPI to your microcontroller.
Select communication mode using solder jumpers or pin headers.
Power with 3.3V or 5V depending on your system.
Use in your embedded system to collect environmental data or train a custom AI model for gas detection.
Applications:
Smart home air quality monitoring
Weather stations and atmospheric research
IoT-based environmental sensing
AI-driven odor detection
HVAC systems
Agricultural and greenhouse monitoring
Package Includes:
1 x BME688 Environmental Sensor Module
Why Choose This Sensor?
Combining top-tier environmental sensing with the latest in AI-ready gas detection, this module provides unmatched versatility and reliability. Its compact size, rich feature set, and compatibility with I2C/SPI make it ideal for hobbyists, developers, and professionals alike.
Get yours today and build smarter, healthier, and more responsive environmental systems!
The latest price of BME688 Environmental Sensor Module Temperature, Humidity, Pressure, Gas Detection with AI in Bangladesh is BDT 2,788 You can buy the BME688 Environmental Sensor Module Temperature, Humidity, Pressure, Gas Detection with AI at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
