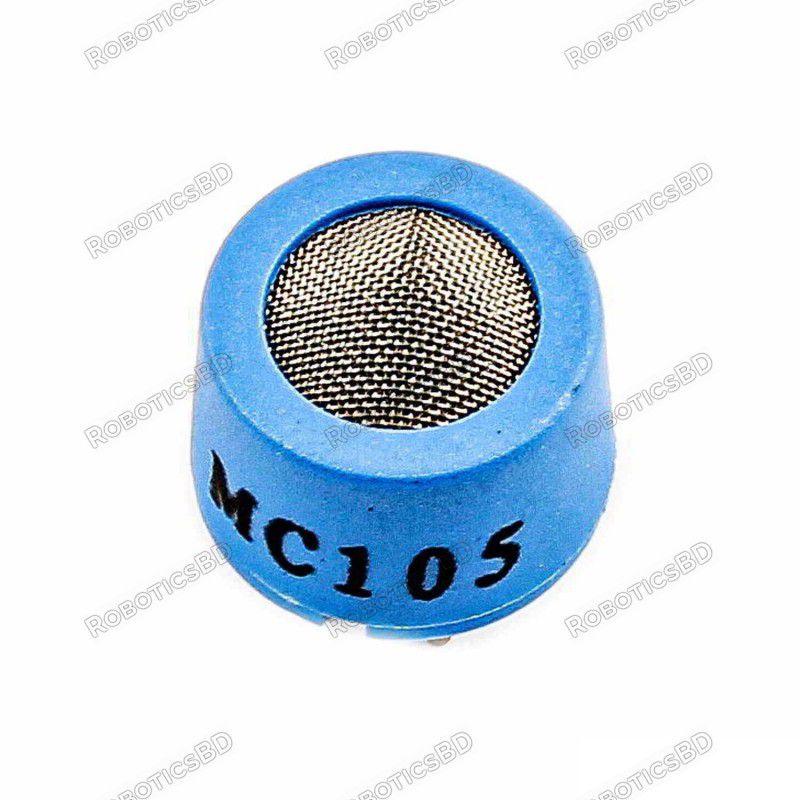

The MC105 Methane Gas Sensor Module is a high-precision catalytic-type sensor designed for detecting combustible gases such as methane (CH4), propane (C3H8), LPG, and CO. It operates using a catalytic combustion principle, where a test element reacts to combustible gases and changes its resistance, generating a proportional voltage output that represents gas concentration levels. A compensating element ensures temperature and humidity stability, making the sensor highly accurate and reliable in various environmental conditions.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The MC105 Methane Gas Sensor Module is a high-precision catalytic-type sensor designed for detecting combustible gases such as methane (CH4), propane (C3H8), LPG, and CO. It operates using a catalytic combustion principle, where a test element reacts to combustible gases and changes its resistance, generating a proportional voltage output that represents gas concentration levels. A compensating element ensures temperature and humidity stability, making the sensor highly accurate and reliable in various environmental conditions.
This sensor is widely used in industrial safety, gas leak alarms, gas detectors, and environmental monitoring applications, providing fast response times and reliable measurements.
✔ High Sensitivity to Methane & Other Combustible Gases – Detects CH4, C3H8, LPG, CO, and other alkanes with precision.
✔ Catalytic Combustion Principle – Ensures stable & accurate gas detection.
✔ Fast Response Time – Reacts within ≤10s for quick detection of leaks.
✔ Compensating Element for Stability – Corrects temperature & humidity fluctuations.
✔ Wide Detection Range – Measures gas concentrations from 0% to 100% LEL (Lower Explosive Limit).
✔ Compact & Durable – Plastic-encapsulated design for long-term use in harsh environments.
✔ Versatile Applications – Ideal for gas leak alarms, gas concentration meters, and industrial safety systems.
| Parameter | Value |
|---|---|
| Model | MC105 |
| Sensor Type | Catalytic Gas Sensor |
| Encapsulation | Plastic |
| Operating Voltage | 2.5V ± 0.1V |
| Operating Current | 150mA ± 10mA |
| Sensitivity | 1% CH4 @ 25–50mV, 1% C3H8 @ 30–70mV |
| Linearity | ≤5% |
| Measuring Range | 0–100% LEL |
| Response Time (90%) | ≤10s |
| Recovery Time (90%) | ≤30s |
| Operating Temperature | -40°C to +70°C |
| Operating Humidity | <95% RH |
| Storage Temperature | -20°C to +70°C |
✔ Gas Leak Alarms – Detects methane, propane, LPG, and other flammable gases to prevent accidents.
✔ Industrial Safety Monitoring – Used in factories, oil refineries, and chemical plants for gas detection.
✔ Home & Commercial Gas Detection – Ideal for kitchens, gas-powered appliances, and boiler rooms.
✔ Gas Concentration Meters – Monitors LEL (Lower Explosive Limit) levels in enclosed spaces.
✔ Environmental Monitoring – Ensures air quality & safety compliance in industrial applications.
✅ Fast Response Time (≤10s) & Quick Recovery (≤30s)
✅ High Sensitivity to Multiple Combustible Gases
✅ Temperature & Humidity Compensation for Stable Performance
✅ Compact & Durable Design for Long-Term Use
✅ Compatible with Microcontrollers for Real-Time Monitoring
The latest price of MC105 Methane Gas Sensor Module in Bangladesh is BDT 330 You can buy the MC105 Methane Gas Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
