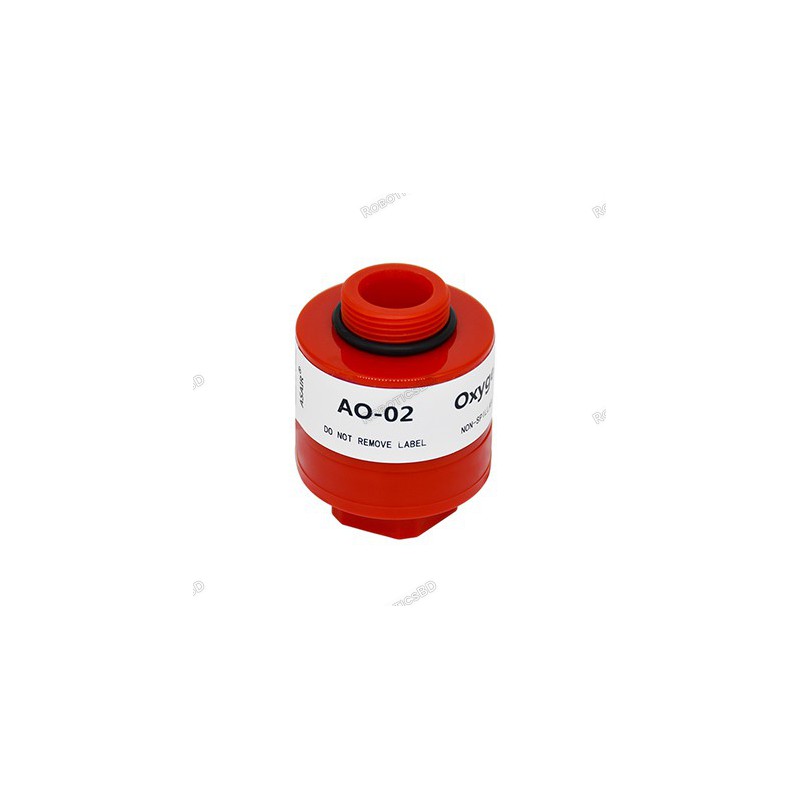

The ASAIR AO-02 Oxygen Sensor is a high-quality, electrochemical sensor designed for accurate and reliable oxygen concentration detection. Featuring a molded body design, the AO-02 offers a fast response time, excellent temperature compensation, and robust anti-interference capabilities. Optimized for both performance and cost-efficiency, this sensor is ideal for a range of applications including vehicle exhaust monitoring, environmental gas analysis, and industrial oxygen detection.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The ASAIR AO-02 Oxygen Sensor is a high-quality, electrochemical sensor designed for accurate and reliable oxygen concentration detection. Featuring a molded body design, the AO-02 offers a fast response time, excellent temperature compensation, and robust anti-interference capabilities. Optimized for both performance and cost-efficiency, this sensor is ideal for a range of applications including vehicle exhaust monitoring, environmental gas analysis, and industrial oxygen detection.
With a linear output of 0–100% oxygen concentration, the AO-02 provides stable and consistent readings without requiring an external power supply. Its compact form, quick response time, and ease of integration make it a preferred choice for both industrial and environmental monitoring systems.
Wide Measurement Range: Detects oxygen concentrations from 0 to 100% Vol. O₂
Fast Response Time: T90 response in less than 5 seconds
No External Power Required: Operates independently through electrochemical reaction
Temperature Compensation: Accurate readings across varied environmental conditions
High Accuracy and Reliability: Low baseline offset and stable linear output
Durable and Robust Design: Optimized structure for long service life
Anti-Interference: Reliable measurements even in challenging environments
Simple Connection: 3-pin Molex header for easy integration
| Category | Specification |
|---|---|
| Operating Principle | Partial Pressure Electrochemical |
| Output Signal | 9–13 mV in Air |
| Measurement Range | 0–100% Vol. O₂ |
| Response Time (T90) | <5 seconds |
| Response Time (T99.5) | <40 seconds |
| Baseline Offset | <20 μV |
| Linearity | Linear 0–100% Vol. O₂ |
| Temperature Compensation | <2% O₂ equivalent variation (0°C to 40°C) |
| Operating Temperature | 0°C to +50°C |
| Operating Pressure | 0.5 – 2.0 Bar |
| Differential Pressure | 0 – 500 mBar |
| Operating Humidity | 0–99% RH non-condensing |
| External Load Resistor | ≥10 kΩ |
| Connector Type | 3-Pin Molex Header (MOLEX 22-29-2031) |
| Recommended Connector Housing | Molex 22-01-2035 with Crimp Terminals MOLEX 08-45-0110 |
Vehicle exhaust gas detection
Environmental air quality monitoring
Industrial oxygen level detection
Combustion gas analysis
Portable and stationary gas analyzers
Research and laboratory experiments
1 x ASAIR AO-02 Oxygen Sensor
Quick and precise oxygen measurement from 0–100% Vol. O₂
Reliable performance in diverse environmental conditions
No need for external power, simplifying system design
Compact and durable for integration into portable and fixed systems
Cost-effective solution for industrial and environmental sensing applications
Monitor oxygen levels accurately and reliably with the high-performance ASAIR AO-02 Oxygen Sensor.
Order now and ensure your system’s air quality and oxygen detection needs are met with precision!
The latest price of ASAIR AO-02 Oxygen Sensor in Bangladesh is BDT 3,350 You can buy the ASAIR AO-02 Oxygen Sensor at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
