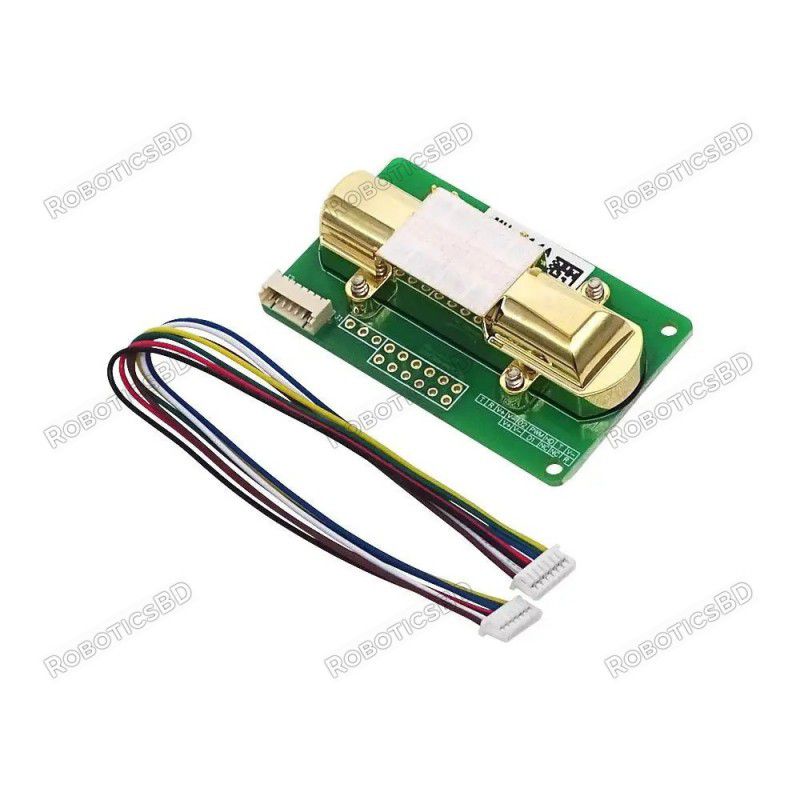

The MH-Z14A NDIR Infrared Carbon Dioxide Sensor Module is a high-performance CO2 sensing solution designed for accurate, long-term indoor air quality monitoring. Utilizing advanced non-dispersive infrared (NDIR) technology, the MH-Z14A offers precise CO2 measurements with excellent stability and low power consumption, making it ideal for applications such as HVAC systems, indoor air quality monitors, greenhouses, and air purifiers.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The MH-Z14A NDIR Infrared Carbon Dioxide Sensor Module is a high-performance CO2 sensing solution designed for accurate, long-term indoor air quality monitoring. Utilizing advanced non-dispersive infrared (NDIR) technology, the MH-Z14A offers precise CO2 measurements with excellent stability and low power consumption, making it ideal for applications such as HVAC systems, indoor air quality monitors, greenhouses, and air purifiers.
This compact sensor provides multiple output interfaces including UART, PWM, and analog output (DAC), ensuring flexible integration with a wide range of microcontrollers and data acquisition systems. Its simple design, high reliability, and easy maintenance make it a preferred choice for environmental control and air safety applications.
High-precision CO2 measurement using NDIR technology
Measurement range: 0 to 10,000 ppm
Flexible output options: UART (serial communication), PWM, and analog (default 0.4V~2V)
Compact and robust design for easy integration into various systems
Low power consumption: Average current less than 60mA
Fast response time: T90 < 120 seconds
Long service life with minimal drift over time
Operating voltage: 4.5V to 5.5V
Simple calibration and maintenance
Measurement Range: 0 to 10,000 ppm
Operating Voltage: 4.5V to 5.5V
Average Current: <60mA
Peak Current: 150mA
Output Signals:
UART (Serial Communication)
PWM (Pulse-Width Modulation)
Analog Voltage Output (DAC) (Default range: 0.4V to 2V)
Response Time (T90): <120 seconds
Operating Temperature: -10°C to +50°C
Module Dimensions: 57.5mm x 34.7mm x 16mm
Supply the sensor with a stable 4.5V to 5.5V DC power source.
Choose your preferred communication method (UART, PWM, or analog output).
Connect the sensor output to your microcontroller or monitoring system.
Read and process CO2 concentration values in real time.
Optional: Calibrate the sensor periodically for maximum accuracy using built-in calibration commands (refer to the datasheet).
HVAC and indoor air quality systems
Greenhouses and agricultural monitoring
Smart home and building automation
Air purifiers and ventilation control
Industrial safety and environmental monitoring
1 x MH-Z14A NDIR Infrared Carbon Dioxide Sensor Module
Precise and stable CO2 detection based on proven NDIR technology
Multiple communication interfaces for easy and flexible integration
Reliable and long-lasting performance even under continuous operation
Compact design ideal for embedded and portable systems
Trusted solution for critical indoor air quality monitoring needs
Ensure optimal air quality and environmental safety with the MH-Z14A NDIR Infrared Carbon Dioxide Sensor Module.
Order now and upgrade your air quality monitoring system with accuracy and reliability!
The latest price of MH-Z14A NDIR Infrared Carbon Dioxide Sensor Module in Bangladesh is BDT 4,500 You can buy the MH-Z14A NDIR Infrared Carbon Dioxide Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
