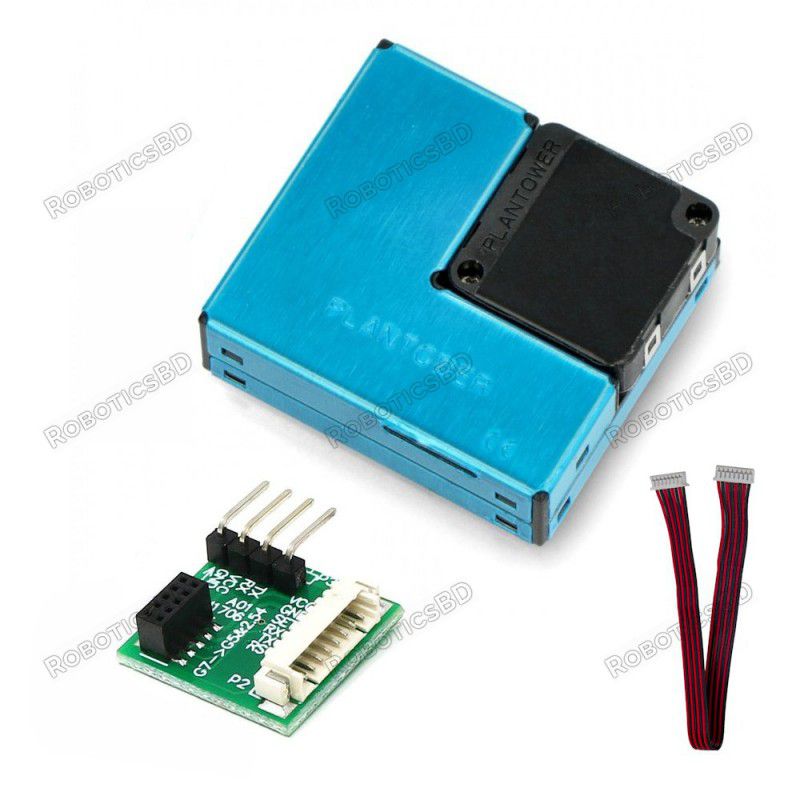

The PlanTower PMSA003-A is a high-precision laser dust sensor designed to measure air purity by detecting PM1.0, PM2.5, and PM10 particle concentrations. This sensor effectively identifies particles as small as 0.3 μm in diameter, including pollutants such as cigarette smoke and car exhaust fumes. With its UART communication interface and a wide operating voltage range, this sensor is an excellent choice for IoT air quality monitoring systems and environmental evaluation tools.
Note: The adapter board will be different as per different shipment, Pinheader might not be included on the board.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The PlanTower PMSA003-A is a high-precision laser dust sensor designed to measure air purity by detecting PM1.0, PM2.5, and PM10 particle concentrations. This sensor effectively identifies particles as small as 0.3 μm in diameter, including pollutants such as cigarette smoke and car exhaust fumes. With its UART communication interface and a wide operating voltage range, this sensor is an excellent choice for IoT air quality monitoring systems and environmental evaluation tools.
| Pin | Description |
|---|---|
| Pin 1 (VCC) | Power supply (5V). |
| Pin 2 (VCC) | Power supply (5V). |
| Pin 3 (GND) | Ground. |
| Pin 4 (GND) | Ground. |
| Pin 5 (RESET) | Reset (3.3V). |
| Pin 6 (NC) | Not connected. |
| Pin 7 (RX) | Serial Receiver Pin (TTL @ 3.3V). |
| Pin 8 (NC) | Not connected. |
| Pin 9 (TX) | Serial Transmit Pin (TTL @ 3.3V). |
| Pin 10 (SET) | Normal/Sleep mode selection. |
The PMSA003-A operates using laser scattering technology, where emitted laser light is scattered by solid particles in the air. An internal algorithm processes the scattering patterns to generate a time-domain light scattering curve. The particulate concentration is then calculated using MIE scattering theory, ensuring accurate and reliable results.
The PlanTower PMSA003-A is a reliable and compact sensor that provides precise air quality data, making it an ideal solution for a variety of environmental monitoring applications.
The latest price of PlanTower PMSA003-A Dust/Air Quality Sensor PM1.0 / PM2.5 / PM10 UART with Adapter Board in Bangladesh is BDT 3,546 You can buy the PlanTower PMSA003-A Dust/Air Quality Sensor PM1.0 / PM2.5 / PM10 UART with Adapter Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
