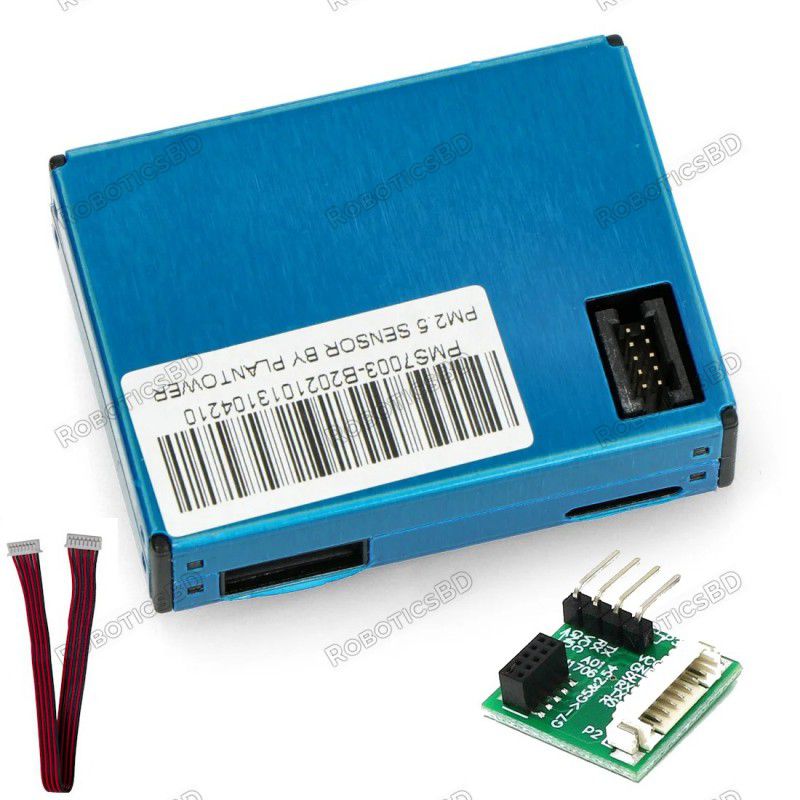

The PMS7003 Dust Sensor is a highly precise module designed to monitor air quality by measuring particulate matter (PM) concentrations, including PM1.0, PM2.5, and PM10. This sensor detects particles as small as 0.3 µm, making it ideal for monitoring pollutants such as cigarette smoke and vehicle exhaust. Its compact design and advanced laser-based measurement ensure reliable performance in various applications, from environmental monitoring to air quality assessment.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The PMS7003 Dust Sensor is a highly precise module designed to monitor air quality by measuring particulate matter (PM) concentrations, including PM1.0, PM2.5, and PM10. This sensor detects particles as small as 0.3 µm, making it ideal for monitoring pollutants such as cigarette smoke and vehicle exhaust. Its compact design and advanced laser-based measurement ensure reliable performance in various applications, from environmental monitoring to air quality assessment.
| Pin | Description |
|---|---|
| Pin 1 | VCC - Power supply (5V). |
| Pin 2 | VCC - Power supply (5V). |
| Pin 3 | GND - Ground. |
| Pin 4 | GND - Ground. |
| Pin 5 | RESET - Resets the module, operates at 3.3V logic. |
| Pin 6 | NC - Not connected. |
| Pin 7 | RX - UART receiver, operates at 3.3V logic. |
| Pin 8 | NC - Not connected. |
| Pin 9 | TX - UART transmitter, operates at 3.3V logic. |
| Pin 10 | SET - Sleep mode activation, operates at 3.3V logic. |
The PMS7003 is an ideal choice for developers and researchers looking to create projects requiring precise air quality measurements, combining compact size with advanced laser-based technology for unmatched reliability.
The latest price of Dust/Air Purity Sensor PM1.0/PM2.5/PM10 - PMS7003 - 3.3V UART with Adapter Board in Bangladesh is BDT 2,590 You can buy the Dust/Air Purity Sensor PM1.0/PM2.5/PM10 - PMS7003 - 3.3V UART with Adapter Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
