The analogue transmitters of the T19 series feature configurable measuring ranges and are intended to be used with resistance thermometers. Via the simple setting of solder bridges, one of several defined measuring ranges can be selected. These transmitters are therefore particularly suitable for users who need to respond quickly to changing requirements. RoboticsBD
The temperature transmitters convert temperaturedependent resistance from the resistance thermometers into a 4 ... 20 mA current loop signal. Thus the measured temperature values can be transmitted securely and simply. RoboticsBD
Accuracy, sensor monitoring and the permissible ambient conditions are matched to the requirements of industrial applications. WIKA data sheet TE 19.03
The case is designed as a head-mounted transmitter for direct mounting within the temperature sensor and can be fitted to any form B DIN connection head.
The transmitters in rail mounting cases are suitable for all standard rails in accordance with DIN EN 50022-35. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Power Supply: | DC 10.5 … 30 V |
| Sensor Type: | Pt100 |
| Output signal: | 4 … 20 mA |
| Permissible Ambient Temperature: | -40 … +85 °C |
| Minimum measuring span: | 10 K or 3.8 ? |
| Thermocouple: | -50 … +1,768 °C |
| Connection methods: | 1 sensor or 2 sensors |
| Max. Lead resistance: | 5 k? each wire |
| Cold-junction compensation, configurable: | internal compensation or external with Pt100, with thermostat or of Rise time t90 approx. 0.8s |
| Damping, configurable: off; | configurable between 1 s and 60 s |
| Switch-on time (time to get the first measured value): | max. 15 s |
| Typical measuring rate 2): | Measured value update approx. 6/s |
| Lead resistance effects: 4-wire: | no effect (0 to 50 # each wire) |
| Ingress protection: | IP00 |
| Connection terminals, captive screws, wire cross-section | #Solid wire: 0.14 … 2.5 mm² (AWG 24 … 14) #Wire with end splice: 0.14 … 1.5 mm² (AWG 24 … 16) |
| Shipment Weight | 0.350 kg |
| Shipment Dimensions | 10 × 10 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

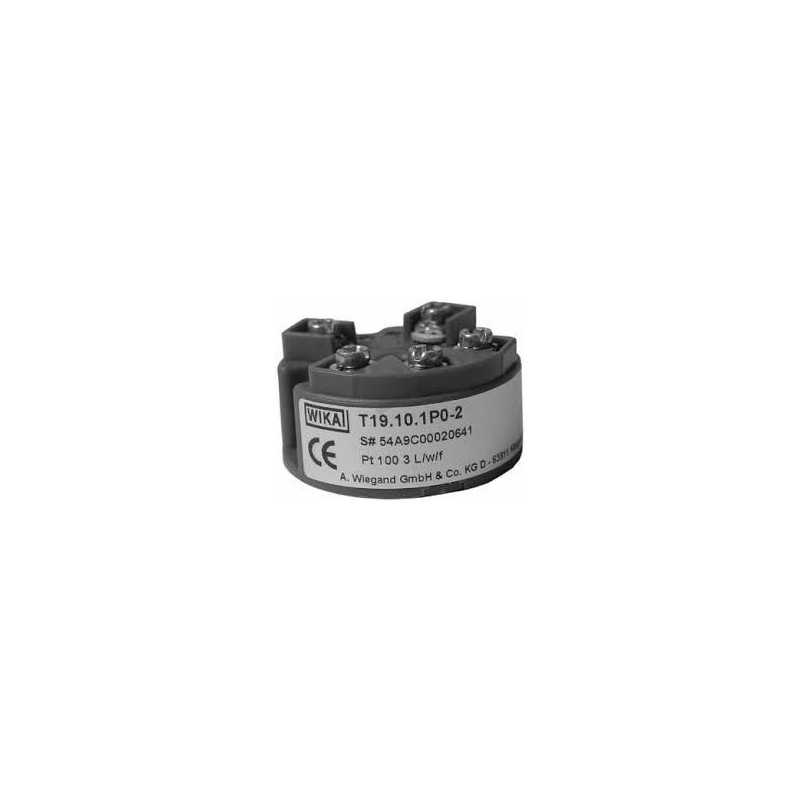

1 x WIKA T19.10.1P0-2 TEMPERATURE TRANSMITTER.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of WIKA T19.10.1P0-2 TEMPERATURE TRANSMITTER in Bangladesh is BDT 8,000 You can buy the WIKA T19.10.1P0-2 TEMPERATURE TRANSMITTER at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
