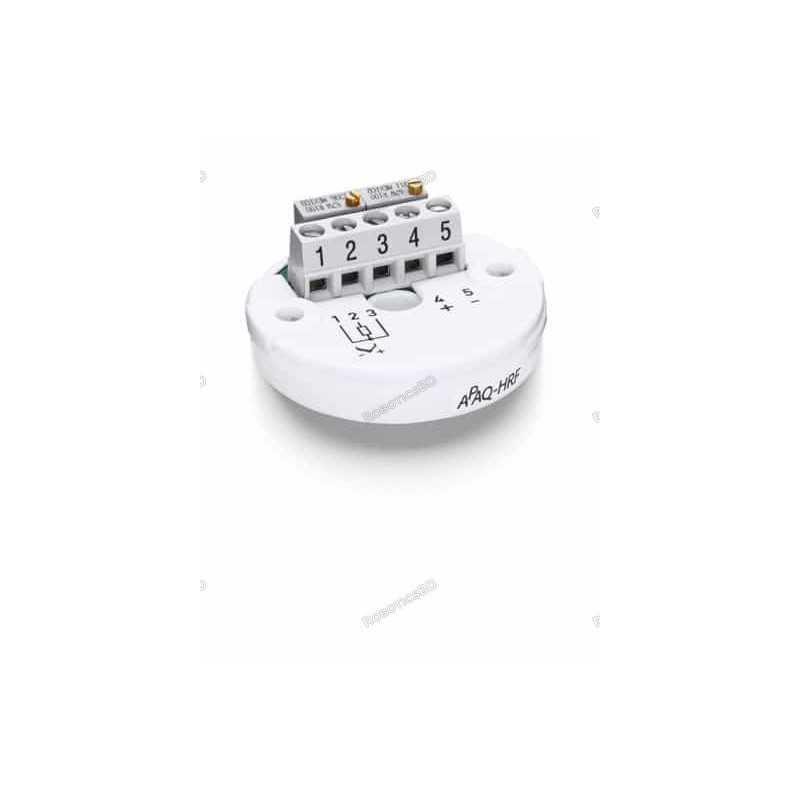

APAQ-H is a family of multirange 2-wire temperature transmitters for Pt100 or Thermocouple input.
Designed for highest reliability and excellent industrial performance. The ”low profile” housing is extremely durable and facilitates easy connections and adjustments. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Type | Head-mounted |
| Input | RTD; Thermocouple |
| Input RTD | Pt100 |
| Input Thermocouple | Type J, L, T, K, N |
| Type Of Transmitter | Analog |
| Output | 4-20 mA |
| Isolation | Unisolated |
| Measuring channels | 1 channel |
| Input connections | 3-wire connection |
| Power supply | APAQ-HRF/-HCF: 6.5 to 32 VDC; APAQ-HRFX/-HCFX: 8.5 to 30 VDC |
| Approvals | ATEX |
| Typical accuracy | RTD: ±0.15% of span; T/C: ±0.5% to ± 1.0% of span |
| Shipment Weight | 0.350 kg |
| Shipment Dimensions | 10 × 10 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x INOR APAQ-H Analog Adjustable 2-Wire Transmitters.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of INOR APAQ-H Analog Adjustable 2-Wire Transmitters in Bangladesh is BDT 7,000 You can buy the INOR APAQ-H Analog Adjustable 2-Wire Transmitters at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
