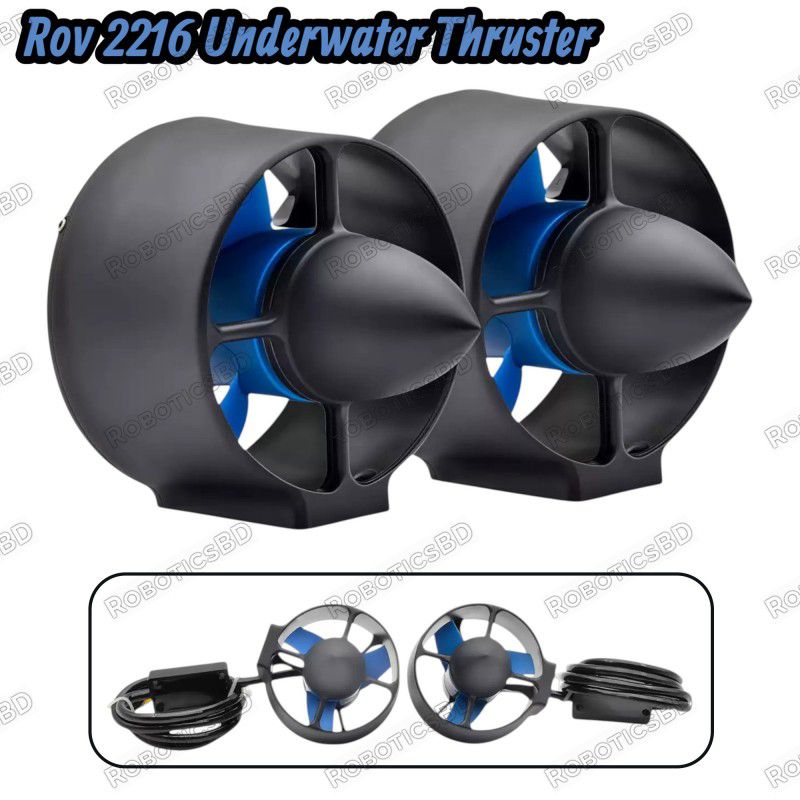

The Model 2216 Underwater Thruster with built-in bidirectional ESC is an advanced propulsion unit designed for ROVs and underwater robotics. Engineered for high thrust and efficient performance, it features a 350KV or 500KV motor housed in a corrosion-resistant epoxy-sealed aluminum casing. Capable of delivering up to 1.2kg thrust forward and 850g in reverse, this thruster supports bidirectional control via standard PWM (1000–2000µs) signals. Its compact form factor (73mm diameter, 112mm length) and compatibility with 3S–6S LiPo batteries make it highly suitable for a wide range of marine applications. With integrated ESC and dual propeller direction support (CW/CCW), the 2216 thruster ensures stable, reliable operation at depths of up to 200 meters. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Powerful Thrust Output – Provides up to 1.2kg forward thrust and 850g in reverse for agile underwater movement
Built-in Bidirectional ESC – Integrated ESC simplifies wiring and supports CW/CCW rotation
Deep-Sea Ready – Epoxy-sealed construction enables safe operation up to 200 meters underwater
Wide Voltage Range – Supports 3S to 6S LiPo batteries (11.1V to 22.2V) for flexible power management
Durable Build – Aluminum alloy motor housing with nylon propeller for longevity and corrosion resistance
PWM Control – Easy integration with standard 1000–2000μs PWM signal control systems
Compact and Lightweight – Weighs only 0.2kg (0.09kg in water), perfect for compact ROV designs
Dual Rotation Support – Comes with both clockwise and counter-clockwise propellers for balanced motion
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
ROV Development – Ideal for building custom remotely operated vehicles
Unmanned Marine Vehicles – Suitable for autonomous boats or submarines
Underwater Inspection Systems – Use in submerged surveillance and monitoring robots
Aquatic Research Projects – Perfect for underwater sensor or sample collection platforms
Robotic Competitions – Powerful and compact thruster for engineering challenges and contests
Aquaculture Monitoring – Can be deployed for monitoring fish farming tanks or net pens
Submerged Exploration Equipment – Great fit for exploration devices in lakes or ocean floors
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model | 2216 Underwater Thruster |
| Motor KV Rating | 350KV / 500KV |
| Rated Voltage | DC 12V / 24V |
| Rated Speed | 4200 RPM / 6000 RPM |
| Rated Thrust (Forward) | 1.2 kg |
| Rated Thrust (Reverse) | 850 g |
| Maximum Working Depth | ≤ 200 meters |
| Control Signal | PWM 1000–2000μs |
| Operating Temperature | -10°C to +65°C |
| Rotation Direction | Clockwise / Counterclockwise |
| Propeller Material | 3-blade Nylon |
| Motor Housing Material | Aluminum Alloy |
| Sealing | Epoxy Resin |
| Drive Type | External Drive |
| Drive Mechanism | External |
| Outer Diameter | 73 mm |
| Length | 112 mm |
| Net Weight | 0.2 kg |
| In-Water Weight | 0.09 kg |
| Connector Type | 3-pin (Three-core) |
| Supported Battery Voltage | 3S–6S LiPo (11.1V–22.2V) |
| Model | ROV-560KV-3KG |
| Place of Origin | Mainland China |
| Shipment Weight | 0.402 kg |
| Shipment Dimensions | 30 × 20 × 15 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x ROV 2216 Underwater Thruster with built-in bidirectional ESC
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of ROV 2216 Underwater Thruster with built-in bidirectional ESC in Bangladesh is BDT 18,750 You can buy the ROV 2216 Underwater Thruster with built-in bidirectional ESC at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
