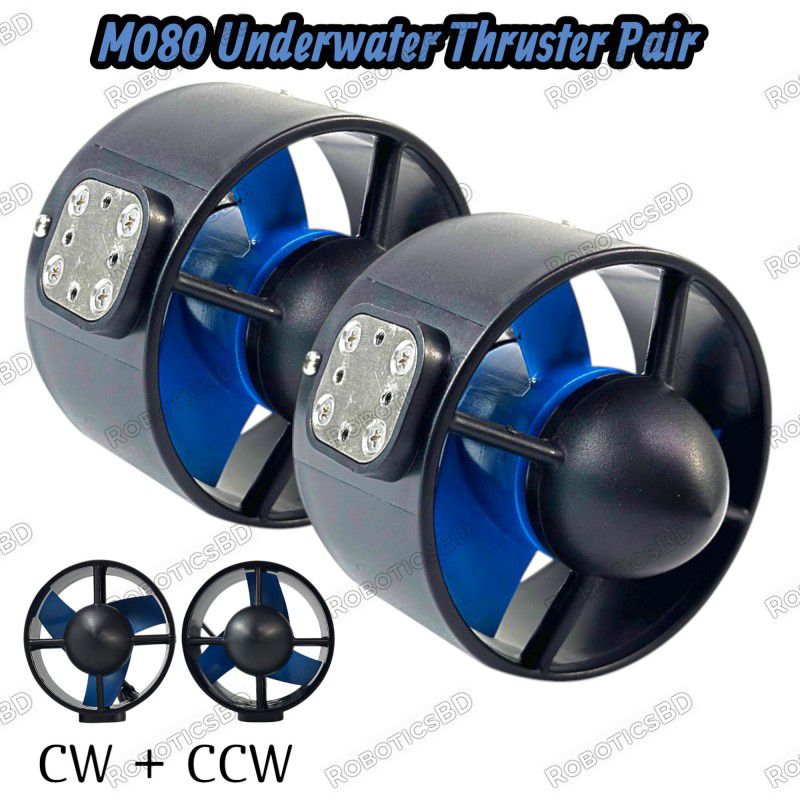

The M080 Underwater Thruster with integrated bidirectional ESC is a high-performance propulsion system crafted for demanding underwater robotics. It features a powerful 270KV brushless DC motor that delivers impressive thrust—up to 6.6kg forward and 4.7kg reverse at 24V. With wide voltage support (12V–24V), the M080 ensures compatibility across various underwater systems. Its integrated 30A continuous ESC simplifies control, accepting PWM signals with a responsive 1150–1850μs range and a neutral zone around 1500μs. The unit is compact yet robust, designed to operate in harsh underwater environments with exceptional maneuverability and durability. Its 95mm propeller and 100mm diameter structure make it a perfect fit for ROVs, AUVs, and unmanned marine vehicles. Whether for research, inspection, or exploration, the M080 is engineered to deliver reliable underwater thrust in all directions. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Powerful Bidirectional Thrust – Provides up to 6.6kg forward and 4.7kg reverse thrust at 24V
Integrated Bidirectional ESC – Built-in 30A ESC supports fast response and simplified wiring
Wide Voltage Compatibility – Operates across 12V, 16.8V, and 24V systems
High Torque Brushless Motor – 270KV motor ensures high thrust with excellent efficiency
PWM Signal Support – Compatible with standard PWM input (1150–1850μs range) for flexible control
Robust Construction – Designed for underwater durability and long-term submersion
Compact and Easy to Mount – Standard mounting hole layout fits most underwater robot frames
Safe and Reliable Wiring – Clear ESC power, signal, and motor output labeling ensures safe integration
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
ROVs (Remotely Operated Vehicles) – Reliable propulsion for tethered underwater exploration
AUVs (Autonomous Underwater Vehicles) – Efficient and quiet operation for autonomous missions
Marine Robotics – Core propulsion for underwater drones and inspection bots
Underwater Inspection Systems – Suitable for infrastructure inspections and environmental monitoring
Oceanographic Research Platforms – Drives precise maneuvering for deep-sea data collection
Unmanned Submersibles – Enhances thrust control for mapping and seabed analysis
Aquaculture Systems – Can be used for net inspections and maintenance automation
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model | M080 Underwater Thruster |
| Voltage Range | 12V – 24V DC |
| Rated Voltage | 24V |
| Maximum Current | 16A |
| Rated Power | 360W |
| Motor KV Rating | 270KV |
| Operating Temperature | 0–60°C |
| Thrust @ 24V | Forward: 6.6kg / Reverse: 4.7kg |
| Thrust @ 16.8V | Forward: 4.0kg / Reverse: 2.8kg |
| Thrust @ 12V | Forward: 2.8kg / Reverse: 1.7kg |
| ESC Continuous Current | 30A |
| ESC Peak Current | 40A |
| ESC Signal Range | 1150–1850μs |
| Neutral Signal | 1500μs |
| Dead Zone | 1485–1535μs |
| PWM Frequency | 20ms (20000μs) |
| Propeller Diameter | 95mm |
| Thruster Dimensions | 108.4mm × 100mm |
| Mounting Hole Compatibility | Standard marine thruster frames |
| Waterproof Construction | Yes |
| Motor Output | 3-phase wires (reversible) |
| Signal Input | White (Signal+), Black (Signal−) |
| ESC Power Input | Thick Red (V+), Thick Black (V−) |
| Controller Input | 5V signal OUT to ESC |
| Shipment Weight | 0.932 kg |
| Shipment Dimensions | 30 × 20 × 15 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x M080 Underwater Thruster with Integrated Bidirectional ESC
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of M080 Underwater Thruster with Integrated Bidirectional ESC in Bangladesh is BDT 29,590 You can buy the M080 Underwater Thruster with Integrated Bidirectional ESC at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
