(Retired) This product has been retired from our catalog and is no longer for sale. This page is made available for those looking for datasheets and the simply curious.

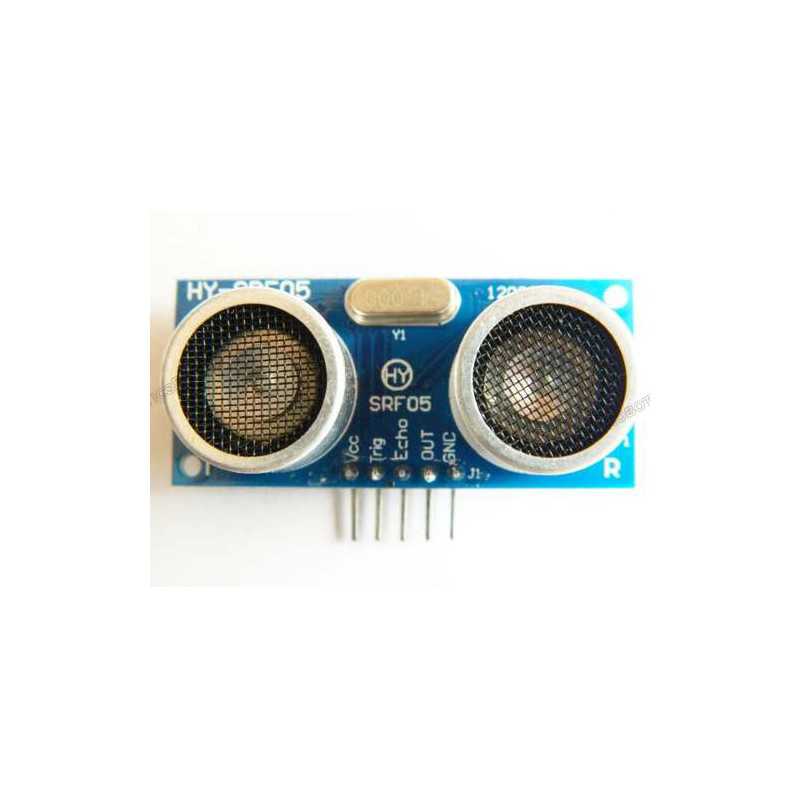

HY-SRF05 Ultrasonic Distance Measurement sensor module.
5-Pin, One each for VCC, Trigger, Echo, Out and Ground.
Specifications HY-SRF05
-
Voltage : DC5V
-
Static current : less than 2mA
-
Detection distance: 2cm-450cm
-
High precision: up to 0.3c
Main technical parameters:
-
Voltage : DC5V
-
Static current : less than 2mA
-
level output: high-5V
-
level output: the end of 0V
-
Sensor angle: not more than 15 degrees
-
Detection distance: 2cm-450cm
-
High precision: up to 0.3cm
Connection: VCC, trig (control side), echo (receiving end), GND
