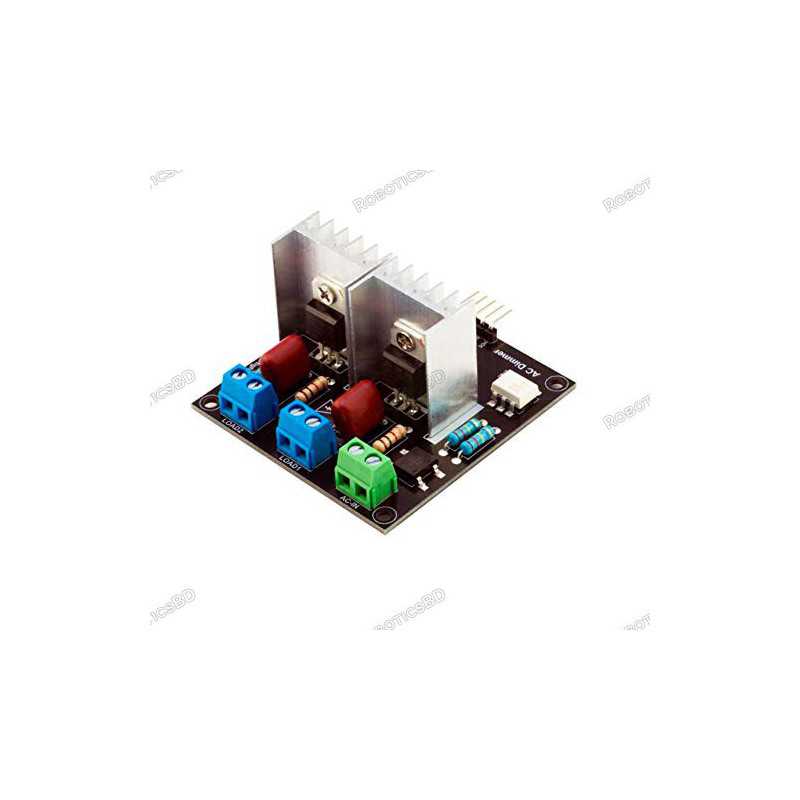

AC Light Dimmer Module, 2 Channel, 3.3V/5V logic, AC 50/60hz, 220V/110V Robotics Bangladesh
  • AC Light Dimmer Module, 2 Channel, 3.3V/5V logic, AC 50/60hz, 220V/110V Robotics Bangladesh

AC Light Dimmer Module, 2 Channel, 3.3V/5V logic, AC 50/60hz, 220V/110V

RBD-1331
  • High-quality BTA16-600B TRIAC
  • AC Voltage: 220V/110V; 50/60Hz
  • Rated current: 5A
  • Logic: 3.3V/5V
  • Peak Operating Current: 8A
BDT 1,099
rating Read the review
Average rating: 5/5 - Number of reviews: 1
Quantity
Sold-out

15 people recently added this item to the cart
There are not enough products in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The AC Dimmer is designed to control the alternating current voltage, which can transfer current up to 600V/5А. In most cases, Dimmer is used to turning the power ON/OFF for lamps or heating elements, it can also be used in fans, pumps, air cleaners, e.t.c. RoboticsBD

Lately, Dimmer has become an often-used decision for smart home systems. For example, when you need to smoothly change the light brightness. The lamp is slowly turning ON or OFF, creating a comfortable atmosphere. Dimmer works most effectively with filament lamps. It’s less stable with low brightness dimmable LED lamps, but with moderate and high brightness it will perform a solid job. Note that luminescent lamps (gas discharge lamps) do not support dimming.

The power part of the dimmer is isolated from the control part, to exclude the possibility of high current disruption to a microcontroller. The logical level is tolerant to 5V and 3.3V, therefore it can be connected to the microcontroller with 5V and 3.3V level logic. RoboticsBD

In Arduino, the dimmer is controlled with RBDdimmer.h library, which uses external interrupts and process time interrupts. It simplifies the code writing and gives more processing time for the main code. This is why you can control multiple Dimmers from one microcontroller. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD



Theory:

Dimming can be achieved by Pulse Skip Modulation:

  1. Method 1 — One or more cycles (sine wave signal) are transferred to the load, while following one or several cycles are blocked.
  2. Method 2 — Partial transference of each sine wave to the load.
  3. Method 3 — Generation of modulated full sine signal of different frequency up to few hundred hertz. This method requires specialized powerful AC generators with different modulation.
  4. Methods 1 and 2 are the easiest to execute with the help of a Dimmer and program code: in both cases, there is a need of circuit that detects the zero crossing and can control a triac.

Connection Diagram:

ATENTION:

We not recommend to use dimmer with normal LED (Notice: dimmable LED lamp can dimming with RobotDyn AC dimmer), luminescent lamp or any other lamp with built-in brightness regulator!

Features:

  1. Single-channel AC dimmer Module.
  2. High-quality BTA16-600B TRIAC
  3. For indoor and outdoor use.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Power 600V - 16A
AC frequency 50/60 Hz
TRIAC BTA16 - 600B
Isolation Optocoupler
Logic level 3.3V/5V
Zero point Logic level
Modulation (PWM with trigger) logic level ON/OFF TRIAC
Signal current >10mA
Environment: For indoor and outdoor use
Operating temperatures: -20°C to 80°C
Operating humidity Dry environment only
ROHS3 Compliant
Shipment Weight 0.035 kg
Shipment Dimensions 10 × 6 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Dimensional drawing
  2. Pinout
  3. Schematic
  4. Datasheet

---

Package Includes:

1 x AC Light Dimmer Module, 2 Channel, 3.3V/5V logic, AC 50/60hz, 220V/110V

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of AC Light Dimmer Module, 2 Channel, 3.3V/5V logic, AC 50/60hz, 220V/110V in Bangladesh?

The latest price of AC Light Dimmer Module, 2 Channel, 3.3V/5V logic, AC 50/60hz, 220V/110V in Bangladesh is BDT 1,099 You can buy the AC Light Dimmer Module, 2 Channel, 3.3V/5V logic, AC 50/60hz, 220V/110V at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-1331
Dimmer Module,
rating
30/05/2022
Zahidul Munshi
Best Dimmer Module,
