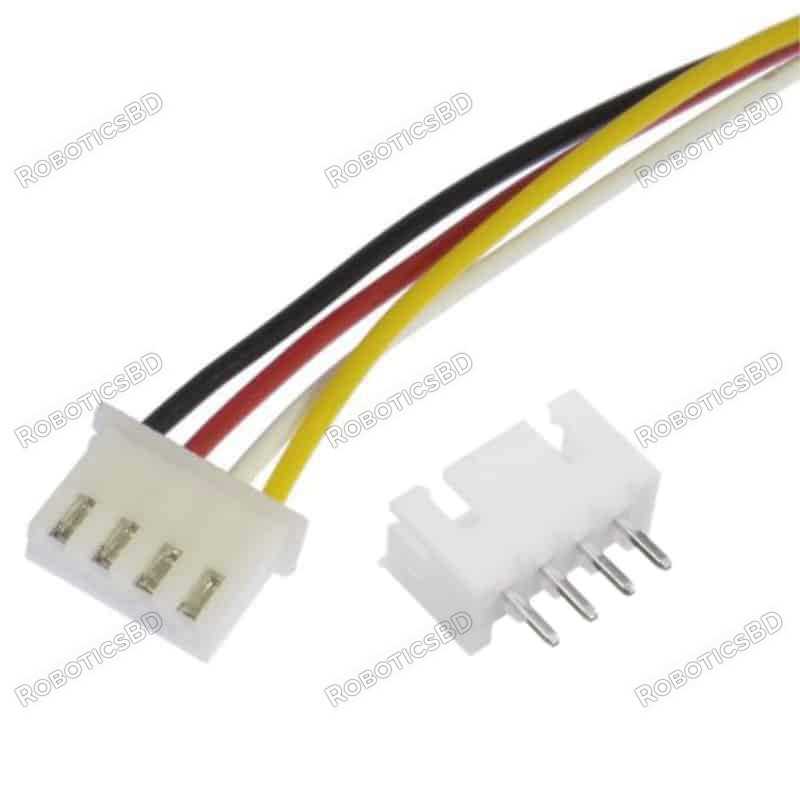

This is a 4 Pin JST XH 2.54mm Pitch Plug and Socket with Cable. It is a multipurpose cable. The length of the cable is 20cm and is a 26 gauge on the AWG scale. Featured By RoboticsBD.RoboticsBDRoboticsBDRoboticsBDRoboticsBDRoboticsBDRoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Plug Type | JST – XH |
| Gender | Male-Female |
| Rated Operating Voltage (VDC) | 250 |
| Current Handling Capacity (A) | 3 |
| No. of Contact Points | 4 |
| Connector Type | JST XH |
| Contact Material | Phosphor Bronze |
| Contact Plating | Nickel |
| Metal Connector Size (mm) | 4.5 |
| Operating Temperature Range (°C) | -25 to 85 |
| Flammability Rating | UL94V-0 |
| Cable Length (cm) | 20 |
| Connector Dimensions(L x W x H) (mm) | 12 x 5.5 x 7 |
| Weight (gm) | 19 |
| Allowed Wire Size (AWG) | 30 ~ 26 |
| Shipment Weight | 0.05 kg |
| Shipment Dimensions | 12 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x 4 Pin JST XH 2.54mm Pitch Plug and Socket with Cable
The latest price of JST XH 2.54 4-Pin Connector Set in Bangladesh is BDT 70 You can buy the JST XH 2.54 4-Pin Connector Set at best price from our RoboticsBD or visit RoboticsBD Office.
|
