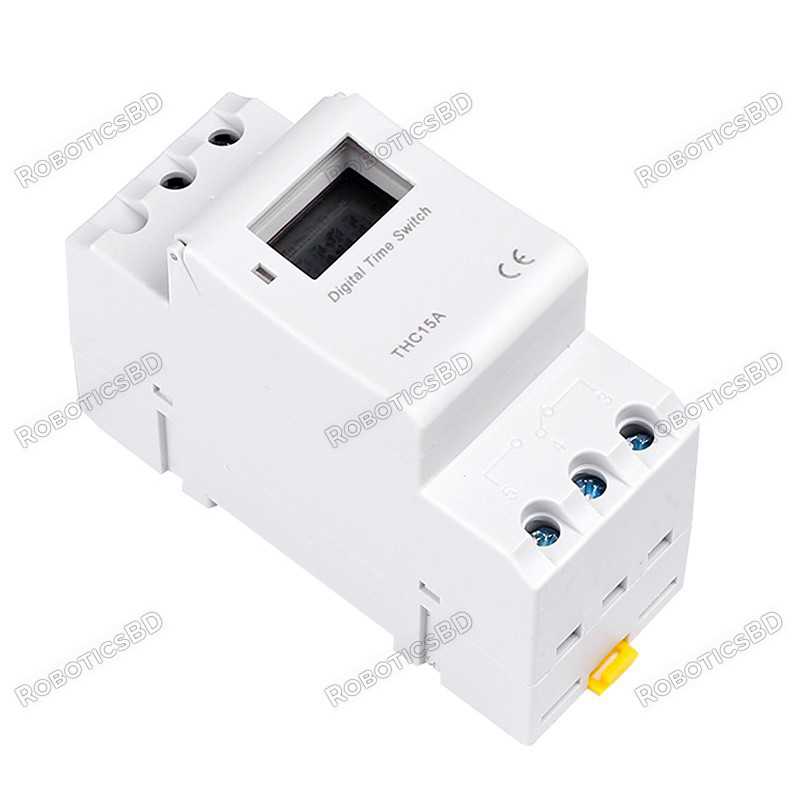

The THC15A Electronic Digital Timer Switch is a versatile and reliable relay control device that can be installed on DIN rail and has a wide range of voltage inputs. It has advanced pre-setting feature for one week in advance and offers a digital electronics general purpose time switch with daily and programs. It allows repeat programs with 16 on/off settings, 18 times pulse programs, and setting on/off manually. It also has a lithium battery power reserve feature which activate when the power supply is cut off and it also has auto time error correction +/- 30 sec, weekly. This timer switch is suitable for various applications such as automatic lighting control, HVAC control, industrial automation, agricultural automation and backup power control.. Featured By RoboticsBD.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Automatic lighting control: The THC15A Electronic Digital Timer Switch can be used to automatically control lighting in commercial and residential buildings, turning lights on and off at preset times to save energy and improve security.
HVAC control: The switch can be used to control heating, ventilation, and air conditioning systems in buildings, automatically turning them on and off at preset times to conserve energy and improve comfort.
Industrial automation: The switch can be used in industrial settings to control various types of machinery and equipment, automatically turning them on and off at preset times to improve efficiency and reduce costs.
Agricultural automation: The switch can be used in agricultural settings to control irrigation systems and other farm equipment, automatically turning them on and off at preset times to improve efficiency and reduce costs.
Backup power control: The switch's lithium battery power reserve feature can be used to automatically switch on backup power systems in case of a power outage, ensuring continuity of operation in critical systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Voltage rating | AC 220V 50/60 hz DC 12V, DC 24V, AC110V, AC380V, AC/DC 24V -240V |
Voltage limit | 10% |
Hysteresis | 2sec/day |
On/Off Operation | 16 on & 16 off, 18 times pulse |
Power consumption | 7.5 VA(max) |
Display | LCD |
Service Life | Mechanical and Electrical 10years |
Minimum interval | 1 minute |
Weight | 140g |
Shipment Weight | 0.143 kg |
Shipment Dimensions | 18 × 8 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Operating Instruction are given inside the manual.
1 x Programmable Timer Relay Control Weekly THC15A
The latest price of Programmable Timer Relay Control Weekly THC15A in Bangladesh is BDT 1,100 You can buy the Programmable Timer Relay Control Weekly THC15A at best price from our RoboticsBD or visit RoboticsBD Office.
