Lynxmotion Johnny 5 Combo Kit

RBD-1313
  • Indoor and Outdoor Tracked Robot Platform
  • Designed for indoor or outdoor use and performs well on many different surfaces
  • Its a very cool and completely functional model of the ever popular movie robot
BDT 137,000
Quantity
Last items in stock

7 people recently added this item to the cart
Only 1 item left in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

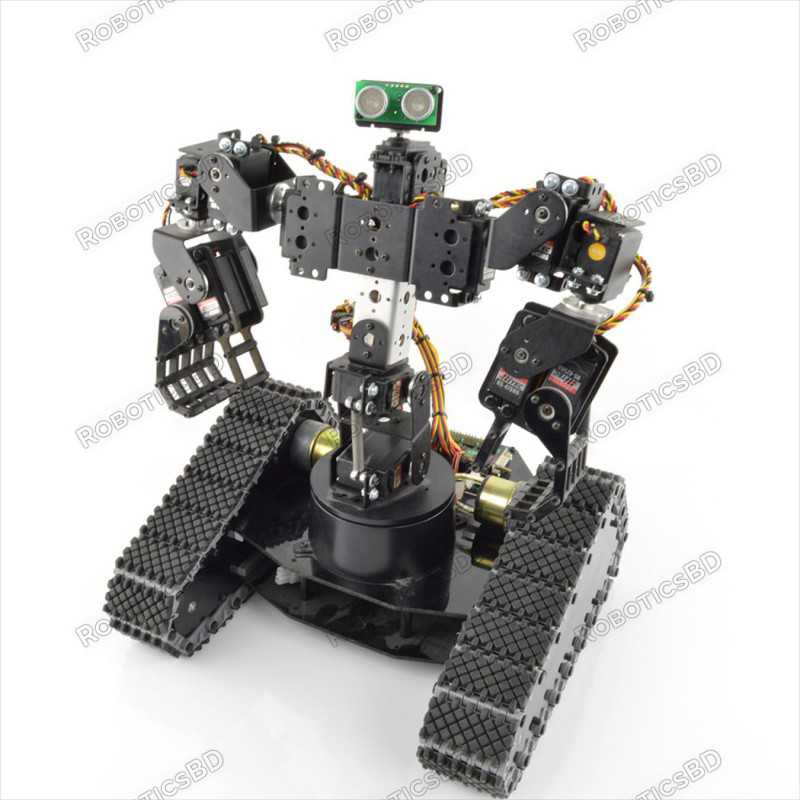

The Lynxmotion Johnny 5 Robot Kit is a very cool and completely functional model of the ever popular movie robot. The kit is available as a full Johnny 5 combo kit, or just the torso and rotating base to be added to a different style base. The robot is designed for indoor or outdoor use and performs well on many different surfaces. RoboticsBD

The Mechanics

The robot is made from Servo Erector Set aluminum brackets, custom injection molded components, and ultra-tough laser-cut Lexan structural components. The torso is fully articulated utilizing 8 x HS-645MG, 3 x HS-475HB / HS-485HB, and 3 x HS-422 servos, and our SSC-32 servo controller. By utilizing heavy duty polypropylene and rubber tracks with durable ABS molded sprockets the robot has excellent traction. It includes two 12vdc 50:1 gear head motors and the Sabertooth 2 x 5 motor controller.

Controlling the Robot

The combo kit includes the powerful Lynxmotion Sequencer Program for PC. You can control the robot from a PC with the included DB9 cable, or use a SparkFun bluetooth modem for wireless PC control. Check out  Assembly Guides page for BlueSMiRF and SSC-32 Configuration Tutorials for specific information. RoboticsBD

SSC-32 Servo Sequencer Utility (created using FlowBotics Studio)

For kits which include the SSC-32 servo controller board, the new SSC-32 Servo Sequencer Utility is now available as a free downloadable utility which makes it easy to experiment with robotics and animatronics. RoboticsBD

This utility is an example of the type of program which can be built using FlowBotics Studio, which includes this program as an open source demo project. The SSC-32 Servo Sequencer Utility program enables you to easily move servo motors, calibrate their position, store and playback motion sequences, upgrade the SSC-32 firmware and more. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Available as Lynxmotion Johnny 5 Combo Kit
  2. Open Source
  3. Arduino-Compatible
  4. Anodized aluminum
  5. Can Be Easily Programmed
  6. Can Walk ,Avoid Obstacles, Move arm, Hold Object, Sign, Pose
  7. Johnny 5 torso and base kit includes following servos: 8 x HS-645MG, 3 x HS-475HB/HS-485HB, 3 x HS-422

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Frame: Anodized aluminum
Length (inch) 10.00"
Width (inch) 11.00"
Height (Overall) (inch) 14.25"
Height (Base and torso) (inch) 11.75"
Ground Clearance (inch) 1.00"
Deck Height (inch) 3.00"
Deck Dimensions (inch) 7.25" W x 8.125" D
Weight (kg) 2.850 (no batteries)
Speed (inch/sec) 24.0 in/sec
Shipment Weight 4.384 kg
Shipment Dimensions 18 × 16 × 7 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Official Product page
  2. Johnny 5 Robot Specs
  3. Johnny 5 Mods
  4. Combo Kit lynxmotion
  5. Track & Tracked Vehicle Assembly Guides
  6. Lynxmotion Johnny 5 Combo Kit - J5C-KT
  7. SSC-32 Servo Sequencer Utility
  8. DF robot guide
  9. Johnny 5 Robot Kit (dfrobot.com)

Package Includes:

1 x Lynxmotion Johnny 5 Combo Kit
