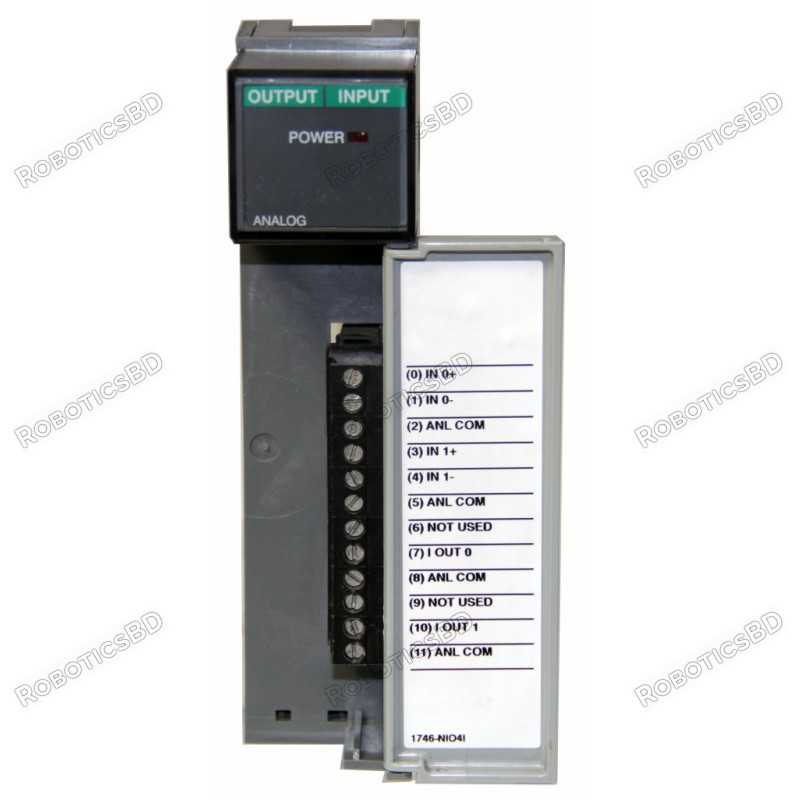

The 1746-NIO4I by Allen Bradley is an analog combination module in the SLC 500 series. This module has four total analog channels; in a single slot module, it has two (2) inputs and two (2) outputs with a common voltage mode of -20 to 20 Volts. The common rejection module signal at 60 Hertz is 105 dB; its normal rejection mode signal at 60 Hertz is 55 dB. Its backplane current draw at 5 Volts is 55 mA, whereas with 24 Volts, it increases to 145 mA. This module must receive both 5 and 24 Volts of power from the backplane source of the SLC 500 setup; some similar modules may require an external power source, but the 1746-NIO4I will not work with one. RoboticsBD
Allen-Bradley 1746-NO4I 4-channel analog output modules provide 14-bit resolution and a 2.5 ms conversion rate. The 1746-NO4I Analog Output modules feature user-selectable current outputs, backplane isolation, removable terminal blocks, and diagnostic feedback. Required Removable Terminal Block: 1746-RT27. RoboticsBD
Overview:
- Allen-Bradley / Rockwell Automation (Made in U.S.A)
- Allen-Bradley 1746-NO4I SLC 500 Analog Current Output Module, 4-Ch, Non-isolated
| General Specification |
| Manufacturer |
Allen-Bradley / Rockwell Automation |
| Series |
SLC 500 |
| Part Number |
1746-NIO4I |
| Product Type |
Combination I/O Module |
| Channels. |
4 Non-isolated |
| Number of Outputs |
4 current outputs (0…20 mA), |
| Individually isolated |
no |
| Backplane Current Load |
55 mA @ 5V, 195 mA @ 24V |
| Step Response @ 95% |
2.5 ms |
| Resolution (bits), Max |
14 |
| Non–linearity |
0.05% |
| Conversion Method |
R-2R Ladder |
| Load Range |
0 to 500 Ohms |
| Maximum Load Reactance |
100 µH |
| Full Scale |
21 mA |
| Overall Accuracy at +25° C (77° F) (max.) |
±0.298% of full scale. |
| Shipment Weight |
0.393 kg |
| Shipment Dimensions |
22 × 16 × 6 cm |
Documentation:
- Datasheet
Package Includes:
1 x Allen Bradley 1746 NIO4I
