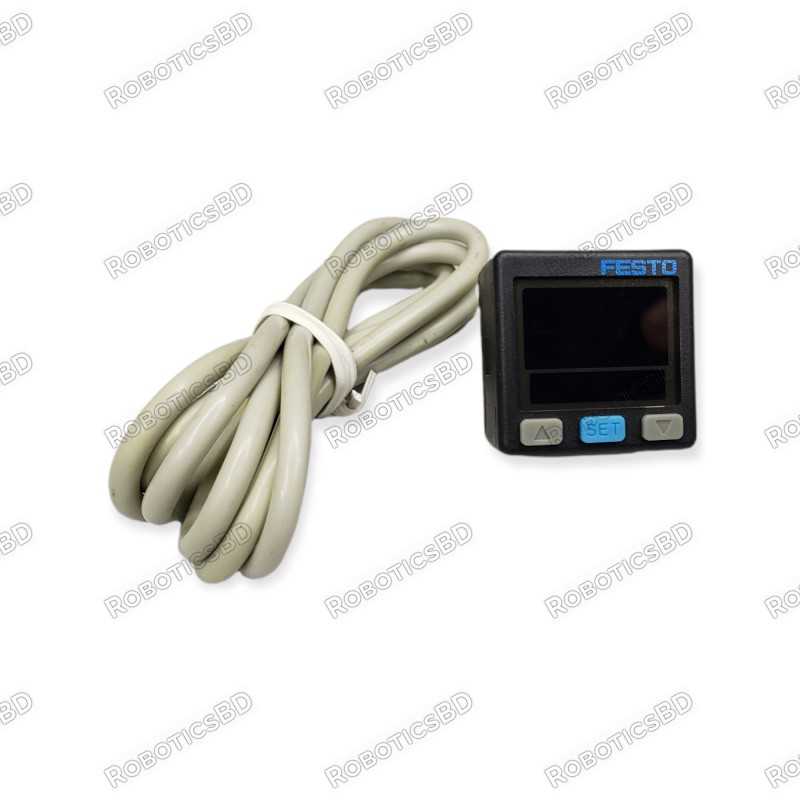

Pressure Sensors with Display SPABT-P10-R18-2N-K1-SA

RBD-1847
  • Compact Design
  • Country Specific pressure
  • Multiple Displayable Unit
  • Multi-colored, two-part display
  • Alphanumeric display
  • Discontinued by Manufactured 2017
BDT 28,000
Quantity
In-Stock

1 person recently added this item to the cart
Only 2 items left in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The pressure sensor SPAB can be used in many industries thanks to its wide range of connection and configuration options and its compact size. Switching point settings are emphasized via switching status indication and switching of the display value colour. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Pressure/vacuum sensing
  2. Light assembly
  3. Wherever there is a need for space-saving pressure measurement with visualization and limited robustness
  4. Easy identification of the system status by means of clear, color-based switching status detection

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Pressure measuring range –1 … +1 or 0 … 10 bar
  2. Relative pressure measurement
  3. Pressure supply port G1/8, R1/8, NPT1/8-27 or M5 female thread
  4. Electrical connection cable, plug M8x1 or plug, square design
  5. Switching output PNP, NPN
  6. Analogue output 1 … 5 V or 4 … 20 mA, switchable
  7. Two-part, multi-coloured display
  8. Copy function (settings can be transferred from one device to another)
  9. Simple commissioning thanks to intuitive operation
  10. Compact design 30x30 mm

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Type SPAB/ Piezo resistive pressure sensor with multi-colored display
Pressure measuring range [bar] P10/ (0 … 10)
Pressure input R/ Relative pressure
Pneumatic connection R18/ Male thread R1/8 and female thread M5
Electrical output 2N/ 2 switching outputs NPN
Electrical connection K1 design
Shipment Weight 0.085 kg
Shipment Dimensions 8 × 6.5 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x Pressure Sensors with Display SPABT-P10-R18-2N-K1-SA

What is the price of Pressure Sensors with Display SPABT-P10-R18-2N-K1-SA in Bangladesh?

The latest price of Pressure Sensors with Display SPABT-P10-R18-2N-K1-SA in Bangladesh is BDT 28,000 You can buy the Pressure Sensors with Display SPABT-P10-R18-2N-K1-SA at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-1847
2 Items
