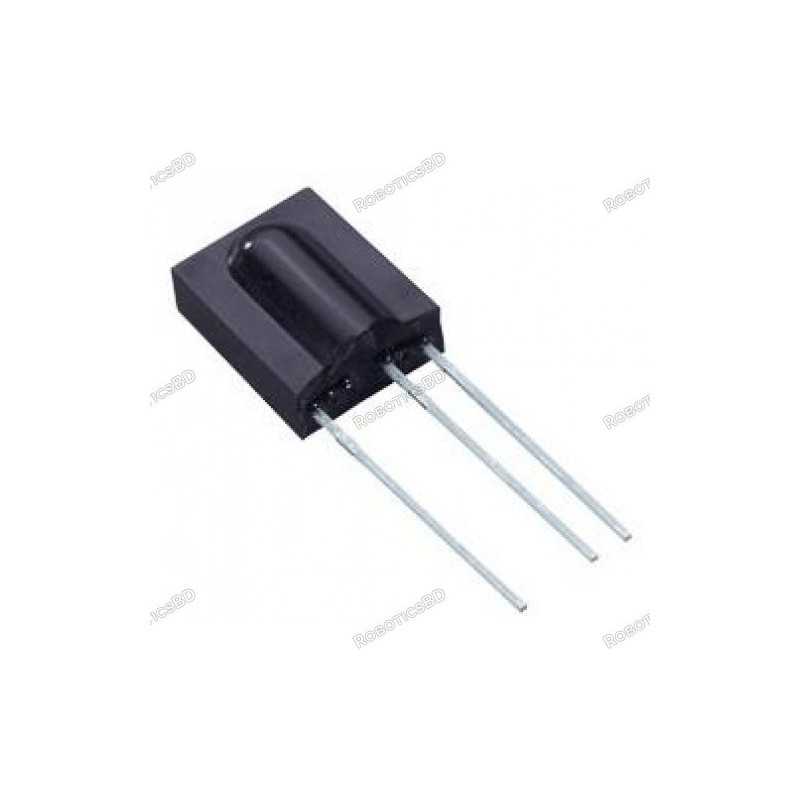

TSOP1738 IR Infrared Receiver

RBD-1196
  • Photo Detector, IR Filter, Preamplifier and PCM frequency filter in one package
  • Shielding against EMI or RFI interference
  • CMOS and TTL Compatible
  • Active Low Output
  • Immunity against ambient light
  • Low Power Consumption
  • Able to transfer data continuously up to 2400bps
  • Supply Voltage : 4.5 – 5.5V

BDT 54
rating Read the 6 reviews
Average rating: 5/5 - Number of reviews: 6
Quantity
In-Stock

22 people have purchased this item in last 12 months
82 people recently added this item to the cart
40 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The TSOP17.. – series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. TSOP17.. is the standard IR remote control receiver series, supporting all major transmission codes. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Photo detector and preamplifier in one package
  2. Internal filter for PCM frequency
  3. Improved shielding against electrical field disturbance
  4. Output active low
  5. TTL and CMOS compatibility
  6. Low power consumption
  7. High immunity against ambient light
  8. Continuous data transmission possible (up to 2400 bps)
  9. Suitable burst length ≥10 cycles/burst

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Supply Voltage (Pin 2) VS –0.3...6.0 V
Supply Current (Pin 2) IS 5 mA
Output Voltage (Pin 3) VO –0.3...6.0 V
Output Current (Pin 3) IO 5 mA
Junction Temperature Tj 100 degree C
Storage Temperature Range Tstg –25...+85 C
Operating Temperature Range Tamb –25...+85 C
Power Consumption Ptot 50 mW
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes :

1 x TSOP1738 IR Receiver.
