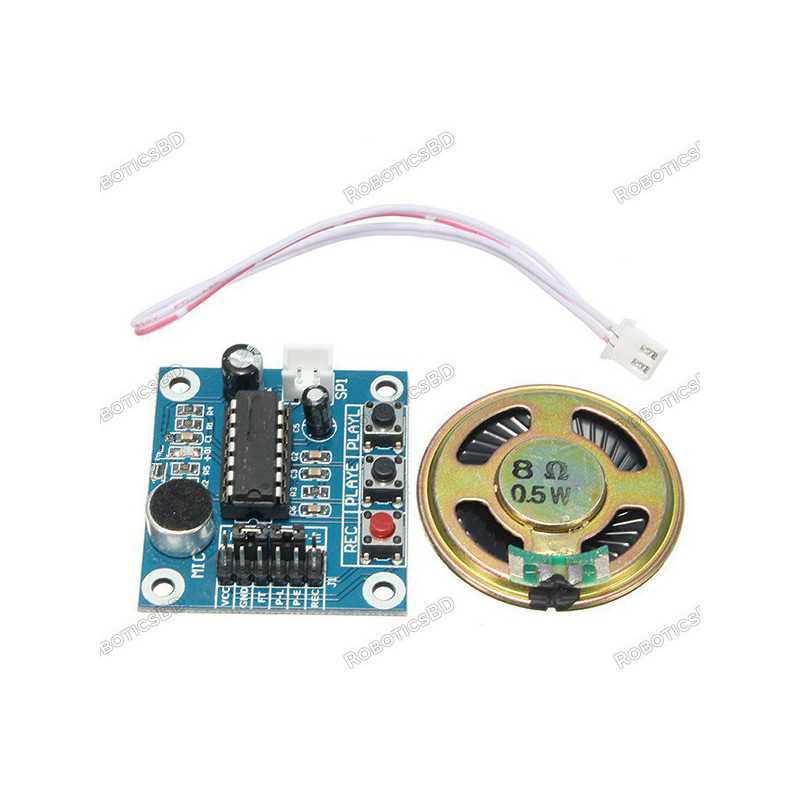

This is ISD1820 Recording Module Voice Board With On Board Mic and Loud Speaker. The ISD1820 Recording Module Voice Board is the real easy way to add Voice Recording (and Playback) to your project. The Module can be operated directly by using the 3 Push-Buttons or with every microcontroller (ex. Arduino).
A microphone is implemented directly on the board, and you can connect any 8 Ohm Speaker. Your recordings are saved even without power due to the non-volatile storage on the ISD1820. RoboticsBD
This module uses the ISD1820 voice record and playback IC to record a single voice message of up to 10 seconds in length. The recorded message is stored in its specialized analog flash memory that will keep the message stored even when power is removed.
The module includes an electret microphone to record your message and push buttons to allow for the record, partial playback, or full playback of the message. Header pins allow for easy interface to a microcontroller and playback can be controlled with just one digital pin.
The package includes an 8 Ohm 0.5W speaker and cable which can be connected directly to the modules speaker output.RoboticsBD
REC Button: record button, you can press and hold the recording, release the button to stop recording;
RLAYE Key: trigger mode playback, press will play this whole speech;
PLAYL Key: jog mode playback, press and hold until playback, release to stop playback;
RPL Jumper: loop mode control, loop playback;
FT Jumper: direct control, microphone voice through the speaker can playback;
| General Specification | |
| The main chip | ISD1820 |
| Operating Voltage (V) | DC 3 ~ 5 |
| Loudspeaker | 8 Ω, 0.5W |
| Speaker Connecting Cable Length (cm) | 20 |
| Speaker Diameter (mm) | 40 |
| Length (mm) | 42 |
| Width (mm) | 33.5 |
| Height (mm) | 11.5 |
| Weight (gm) | 20 |
| Shipment Weight | 0.022 kg |
| Shipment Dimensions | 8 × 6 × 3 cm |
1 x ISD1820 Recording Module Voice Board With On-Board Mic.
1 x Loud Speaker.
The latest price of ISD1820 Voice Recording Module With Mic and Loudspeaker in Bangladesh is BDT 280 You can buy the ISD1820 Voice Recording Module With Mic and Loudspeaker at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
