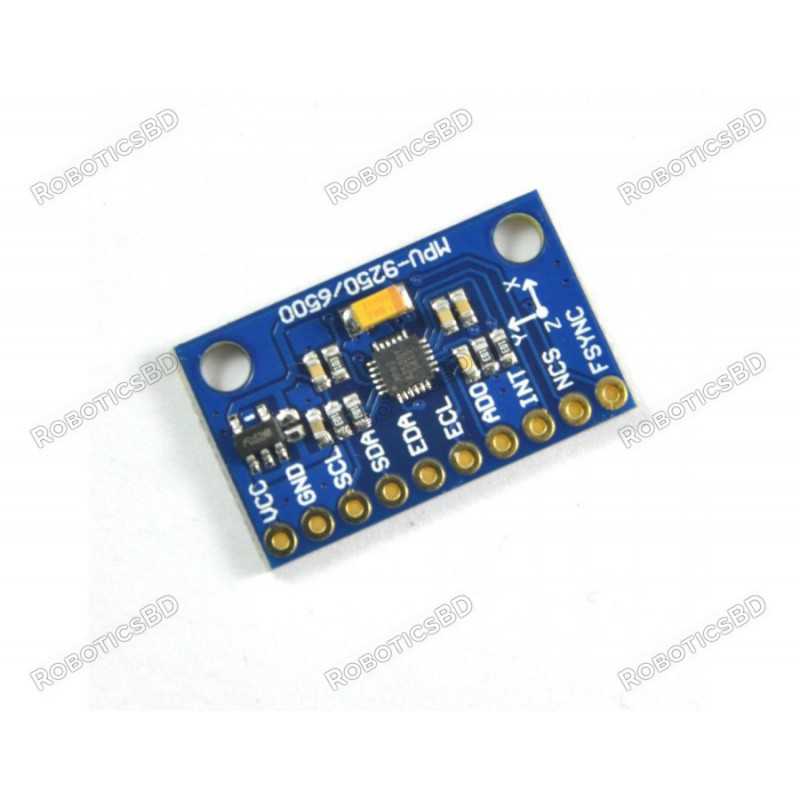

MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module features the MPU-9250, which is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. One die houses the 3-Axis accelerometer and gyroscope. The other die houses the AK8963 3-Axis magnetometer. Hence, the MPU-9250 is a 9-axis Motion Tracking device that combines a 3-axis accelerometer, gyroscope and magnetometer, and a Digital Motion Processor (DMP). It is based on I2C Address, Address: 0x68 by default, 0x69 if AD0 is pulled high. RoboticsBD
The MPU-9250 also features an embedded temperature sensor. This module includes pull-up resistors on the SDA, SCL, and nCS lines, pull-down resistors on the FSYNC and AD0 lines, and an onboard 3.3V voltage regulator allowing you to power the module from 5V sources such as an Arduino. If you desire to power the module from 3.3V you can bridge the solder jumper next to the voltage regulator to bypass the regulator. RoboticsBD
| General Specification | |
| Power Supply | 4.4 to 6.5 V or 3.3V (if you solder the solder jumper near the on-board voltage regulator) |
| Gyro range | ± 250 500 1000 2000 ° / s |
| Acceleration range | ± 2 ± 4 ± 8 ± 16g |
| Magnetic field range | ± 4800uT |
| Degree of Freedom (DOF) | 9 |
| Interface | I2C |
| Length (mm) | 25 |
| Width (mm) | 15 |
| Height (mm) | 3.5 |
| Weight (gm) | 5 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 4 × 2 × 1 cm |
1 x MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module
1 x Jumper Header(Unsoldered).
The latest price of 9 Degrees of Freedom Breakout- MPU9250 in Bangladesh is BDT 850 You can buy the 9 Degrees of Freedom Breakout- MPU9250 at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
