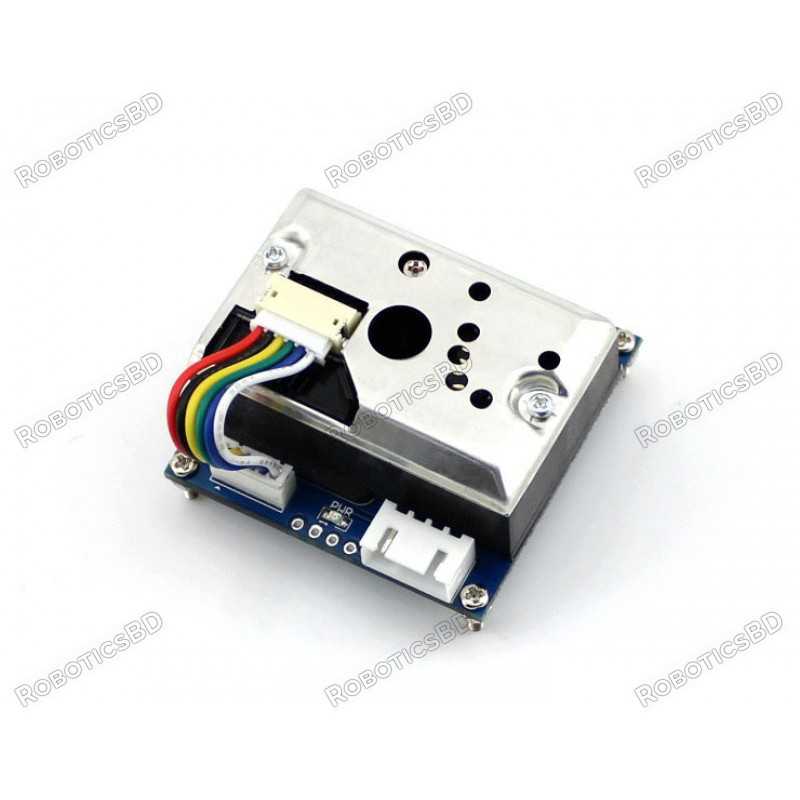

Dust Sensor For Arduino

RBD-0338
Waveshare
  • Sharp GP2Y1010AU0F onboard,
  • Detecting fine particle larger than 0.8μm
  • Low power consumption
  • Analog voltage output
  • The output level is linear with dust density

Check out New Product

Optical Dust Sensor- GP2Y1010AU0F

BDT 890
Quantity
Out-of-Stock

38 people recently added this item to the cart
There are not enough products in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement
Dust Sensor, A simple Air Monitor

Featured By RoboticsBD.

(Retired) This product has been retired from our catalog and is no longer for sale. This page is made available for those looking for datasheets and the simply curious.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Sharp GP2Y1010AU0F onboard, detecting fine particle larger than 0.8μm in diameter, even like the cigarette smoke
  2. Low power consumption, analog voltage output, the output level is linear with dust density
  3. Embedded voltage boost circuit to support wide range of power supply

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD Robotics

Applications:

  1. Air purifier
  2. Air conditioner
  3. Air monitor
  4. PM2.5 Detector

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD Robotics

Pin Description:

In the case of working with a MCU:

  1. VCC ↔ 2.5V ~ 5.0V
  2. GND ↔ GND
  3. AOUT ↔ MCU.IO (analog output)
  4. ILED ↔ MCU.IO (module driving pin)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD Robotics

General Specification
Sensitivity : 0.5V/(100μg/m3)
Measurement range : 500μg/m3
Power : 2.5V~5.5V
Operating current : 20mA(max)
Operating temperature : -10℃~65℃
Storage temperature : -20℃~80℃
Life time : 5 years
Dimension : 63.2mm×41.3mm×21.1mm
Mounting holes size : 2.0mm
Air hole size : 9.0mm
Shipment Weight 0.045 kg
Shipment Dimensions 6 × 5 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD Robotics

Package Includes:

1 x Dust Sensor For Arduino

What is the price of Dust Sensor For Arduino in Bangladesh?

The latest price of Dust Sensor For Arduino in Bangladesh is BDT 890 You can buy the Dust Sensor For Arduino at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
