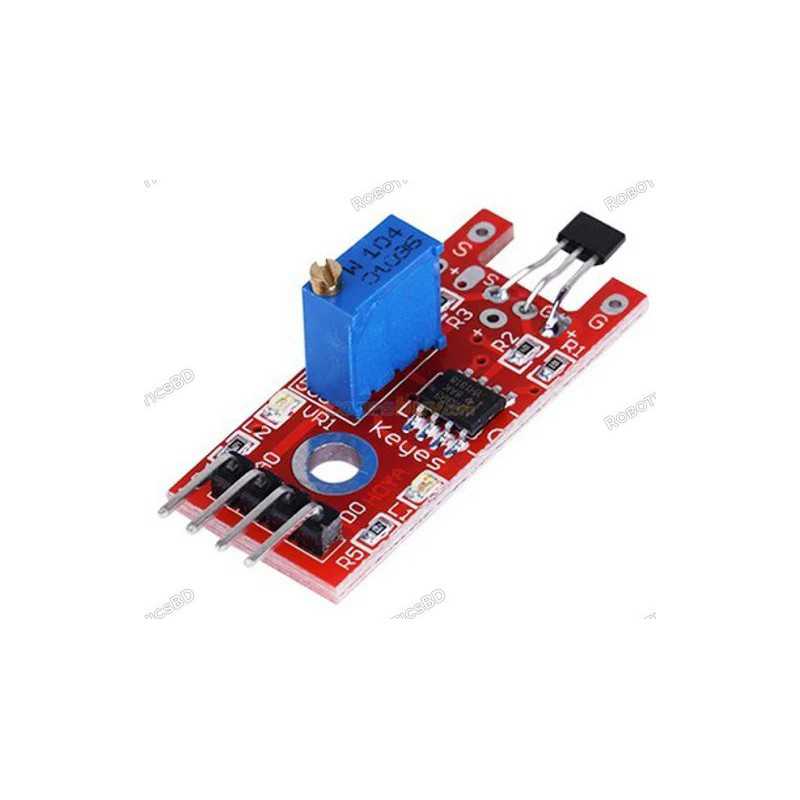

The Linear Magnetic Hall sensor module and a digital interface, built-in 13 LED build a simple circuit to produce a magnetic field warning lamp comes with digital interfaces of the LED, the linear Hall sensor magnetometer access number 3 interface, when linear Hall magnetometer Sensor senses a key signal, LED lights, otherwise off. Featured By RoboticsBD
Hall switch integrated circuit using hall effect principle, Uses the semiconductor integrated technology manufacturing magnetic susceptibility of the circuit, it is by the voltage regulator, hall voltage generator, differential amplifier, Schmitt triggers, temperature compensation, and the open collector output stage circuit composed of magnetic sensitive sensor circuit, its input for the magnetic induction intensity, the output is a digital voltage signal.
A magnetic field is detected by the sensor and will be printed as an analog voltage value. You can control the sensitivity of the sensor with the potentiometer. Featured By RoboticsBD
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Note: PCB might be different from the picture as per stock
| General Specification | |
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Length (mm) | 35 |
| Width (mm) | 15 |
| Height (mm) | 14 |
| Weight (gm) | 3 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x Linear Magnetic Hall sensor
