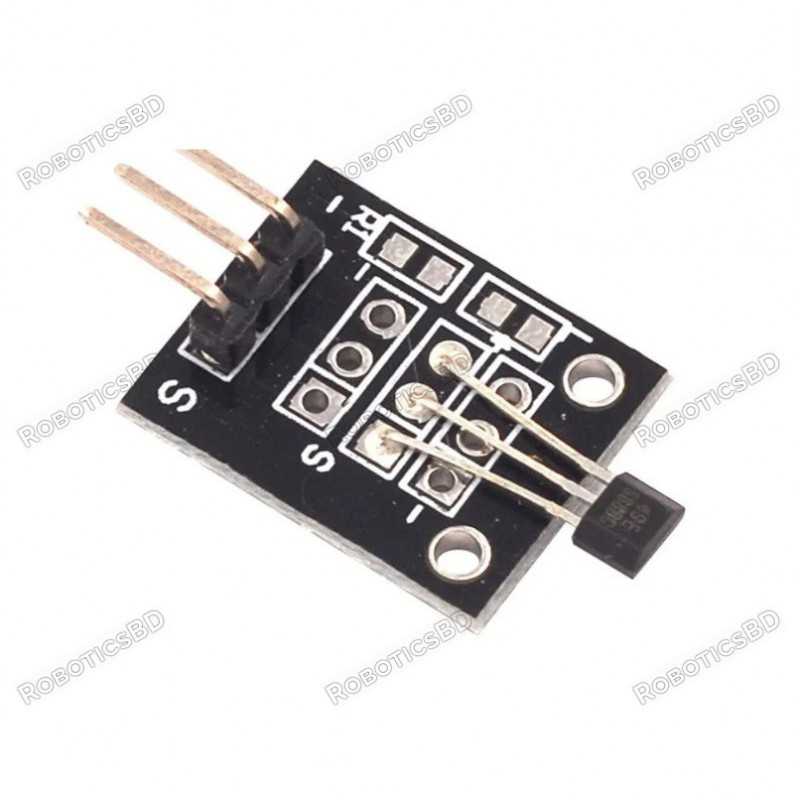

Analogy Hall Magnetic Sensors are 3144 Series Hall principle of Hall effect switch IC, using technology to produce magnetic semiconductor integrated circuit, which is determined by the voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger, temperature compensation circuit, and the collector electrode open-circuit output stage consisting of the magnetic sensing circuit, the input for the magnetic flux density, the output is a digital voltage signal. Analog magnetic sensor module and a digital interface, built-in 13 LED build a simple circuit to produce a magnetic flash. Featured By RoboticsBD
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Note: PCB might be different from the picture as per stock, functionality remains same.
Features:
- Small size
- High sensitivity
- Fast response temperature
- good performance
- Precision and high reliability
| General Specification |
| Type |
Magnetic Sensor Module |
| Mainly Compatible with |
Ardunio |
| Weight(g) |
2 |
| Dimension(mm) |
30 x 15 x 6 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
Package Includes:
1 x Analogy Hall Magnetic Sensors
