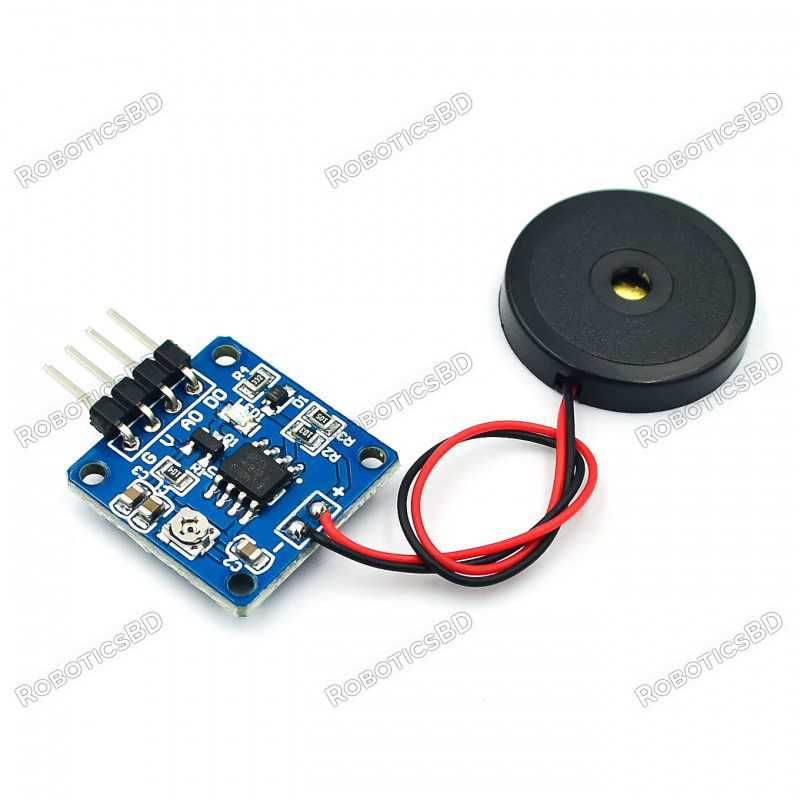

Piezoelectric Sensor, Two Optional Output: ADO-Analog Signal/DO-TTL Level Ceramic Vibration Sensor Module, DC 5V Sensitivity Adjustable Vibration Induction Switch Module for Arduino DIY
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Feature:
1. DO output: TTL level output. Output signal LED indication.
2. The TTL output valid signal is high level, the output control current can reach 1A, and external high-power LED lights can be connected.
Specification:
Item Type: Vibration Switch Sensor Module
Working Voltage: 5.0V (DC)
Interface Type: AD/DO
AO: Analog Signal Output
DO: TTL Level Output
Working Temperature: -10 ° C ~ +70 ° C
Size: Approx. 20 x 20mm / 0.8 x 0.8in
Weight: 4.5 g / 0.2 oz(approx.)Test Method and Wiring:
G (GND):: Power ground
V (VCC): Operating voltage 5V (DC)
ADO: Analog signal output
According to the vibration intension, the higher the output voltage, the higher the vibration amplitude sensitivity can be adjusted by the potentiometer (the left turn sensitivity is low, the right turn sensitivity is high). The high sensitivity output can be adjusted to respond with a mouth blow or a tap with a hand.
DO: TTL level output. Output signal LED indication. TTL output valid signal is high level, output control power
Package List:
1 x Module
The latest price of Piezoelectric Vibration Sensor Module with Analog & Digital Output in Bangladesh is BDT 180 You can buy the Piezoelectric Vibration Sensor Module with Analog & Digital Output at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
