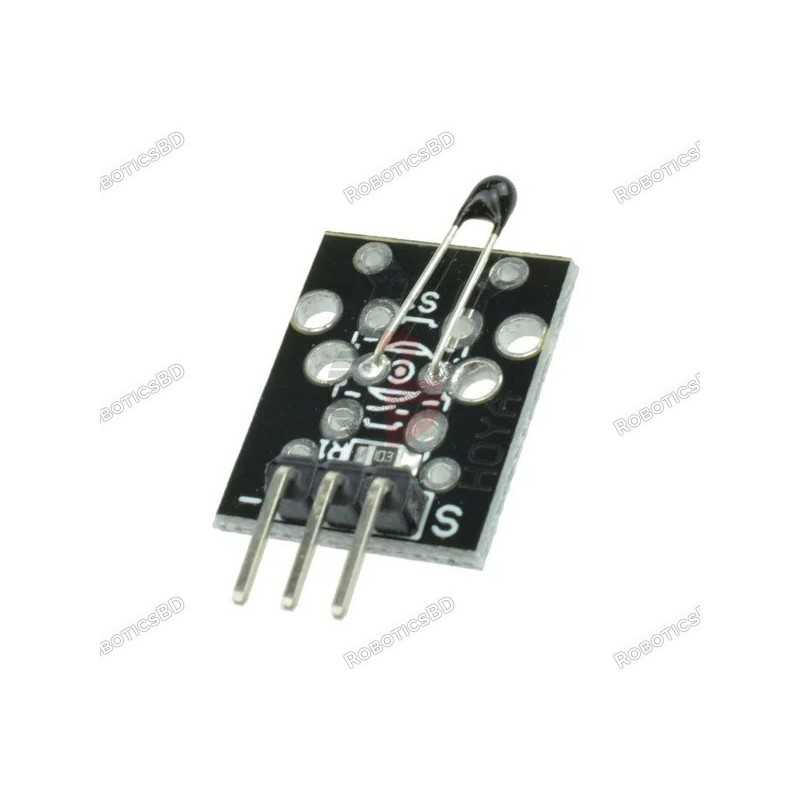

The Analog Temperature Module is based on the thermistor (resistance increases with the ambient temperature changes) which sense the real-time temperature of the surrounding environment changes. Change in temperature data in analog form can be taken from this module on analog IO pins, then through any microcontroller, it can be easily converted and displayed in Celsius degrees or any other respective Unit. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

Note: PCB might be different from the picture as per stock

Features:

1. Operating Voltage: 5v.
2. Temperature measurement range : -55°C to 125°C.
3. Measurement Accuracy : ±0.5°C.

Please allow 5% measuring deviation due to manual measurement.

Test Code:

1. double Thermister(int RawADC)

      double Temp;

      Temp = log(((10240000/RawADC) – 10000));

      Temp = 1 / (0.001129148 + (0.000234125 + (0.0000000876741 * Temp * Temp ))* Temp );

      Temp = Temp – 273.15;// Convert Kelvin to Celcius

      return Temp;

      }

      void setup() {

      Serial.begin(9600);

      }

      void loop() {

      Serial.print(Thermister(analogRead(0)));

      Serial.println(“c”);

      delay(500);
                  }

Package Includes:

1 x Analog Temperature Module.

What is the price of Analog Temperature Sensor Module in Bangladesh?

The latest price of Analog Temperature Sensor Module in Bangladesh is BDT 45 You can buy the Analog Temperature Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
