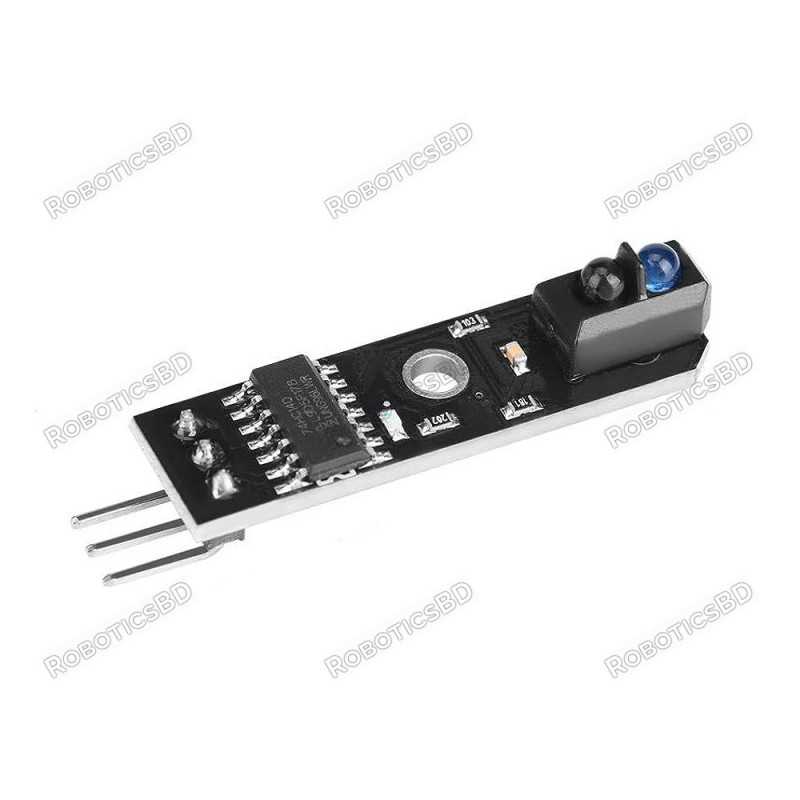

This TCRT5000 Single Channel Line Tracking Sensor Module is a great detector for a line-following robot. RoboticsBD
TCRT5000 Single Channel Line Tracking Sensor Module is a carrier board for TCRT5000 reflective optical sensor. Although it is designed for use with line-following robots, it can be used in mini-sumo robots for line control. The board has a digital output. RoboticsBD
The concept of working of line follower sensor is related to light. We use here the behavior of light at the black and white surface. When light fall on a white surface it is almost fully reflected and in case of black surface light is completely absorbed. This behavior of light is used in building a line follower sensor.
Features :
- Working voltage of 5V, the output of the black line low, white line of high output
- Uses Infrared Light to Detect Anti-Interference Ability
- Sensors to adopt TCRT5000 High Sensitivity, Stable Performance
- Exquisite workmanship, with the indicator
- Has a fixed bolt hole for easy installation. RoboticsBD
| General Specification |
| Operating Voltage (VDC) |
3.3 ~ 5 |
| Supply Current (A) |
≥ 20mA |
| Optimal Sensing Distance(mm) |
3 |
| Output Format |
A Analog and Digital Voltage |
| Length (mm) |
42 |
| Width (mm) |
10 |
| Height (mm) |
10 |
| Weight (gm) |
2 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
5 × 2 × 2 cm |
Package Includes :
1 x Infrared Line Track Tracker Follower Sensor
