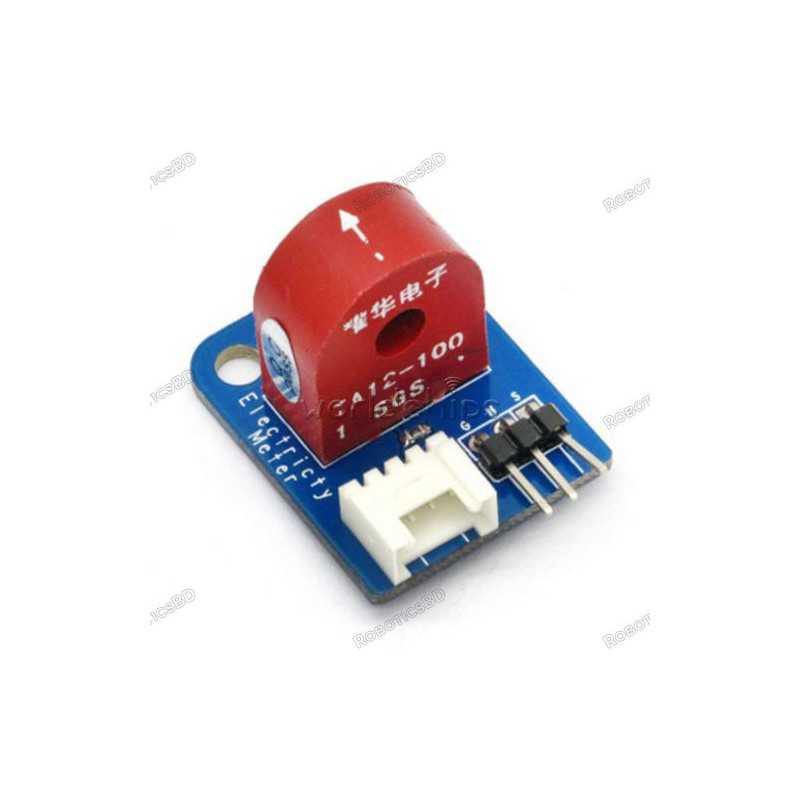

This electricity sensor is based on TA12-100 current transformer, which can transform AC signals of large current into small amplitude signals. The maximum current that can be detected can reach 5A, and the present current signal can be read via analog I / O port. RoboticsBD
It has Onboard sampling resistor and precision microcurrent transformer do accurate sampling for the signal and appropriate compensation, and other functions. The module can measure within 5A current communication, corresponding to output analog quantity can be adjusted. RoboticsBD
Features :
- Onboard precision microcurrent transformer. RoboticsBD
- Onboard sampling resistor.
- The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.
- Type: Sensor Brick
- Interface:3PIN
- Power Supply:5V
- Board Size:30 × 24 × 1.6mm
- Weight:25.00g
| General Specification |
| Rated Input Current (A) |
5 |
| Rated Output Current (mA) |
5 |
| The linear range |
0 ~ 10A (100 ohms) |
| Change |
1000: 1 |
| Linearity |
0.002 |
| Precision Rating |
0.2 |
| Sealing material |
Epoxy Resin |
| Operating Temperature (°C) |
-40 to 90 |
| Length (mm) |
30 |
| Width (mm) |
24 |
| Height (mm) |
1.6 |
| Weight (gm) |
25 |
| Shipment Weight |
0.027 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Package Includes :
1 x AC 0~5A Analog Current Meter Module Ammeter Sensor Board for Arduino
