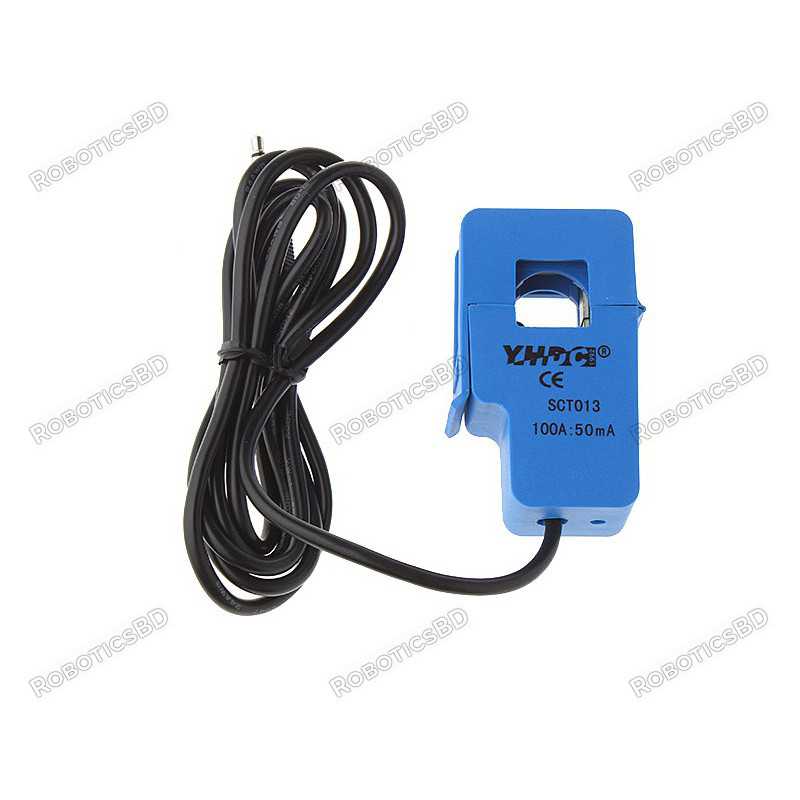

The SCT-013-050 Non-invasive current sensor offers a silicon steel sheet split core structure, hanging installation with leads Length of 1m, used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor, etc. Featured by RoboticsBD.
Applications
- Suitable for the current measuring.
- Monitoring and protection of AC motor
- Lighting equipment
- Air compressor
Features :
- Non-invasive current transformer
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
- Meet UL94-V0 flame retardant properties
- Two forms of output current, voltage (voltage output built-in the sampling resistor).
| General Specification |
| Model |
SCT-013-050 |
| Rated Input (rms) (A) |
50 |
| Max. Input (A) |
- |
| Rated output (V) |
1 |
| Linearity |
<0.2% |
| Accuracy |
±1% |
| Work voltage (V) |
660 |
| Frequency range |
50Hz – 1KHz |
| Dielectric strength |
3.5KV 50Hz 1min |
| Operating Temperature (°C) |
-25 ~ 70 |
| Connecting cable length (m) |
1 |
| Length (mm) |
57.5 |
| Width (mm) |
34 |
| Height (mm) |
21 |
| Weight (gm) |
64 |
| Shipment Weight |
0.07 kg |
| Shipment Dimensions |
8 × 6.5 × 2.5 cm |
Dimensional diagram:
Package Includes:
1 x Non-invasive AC current Sensor Split Core Current Transformer SCT-013-050 50A
