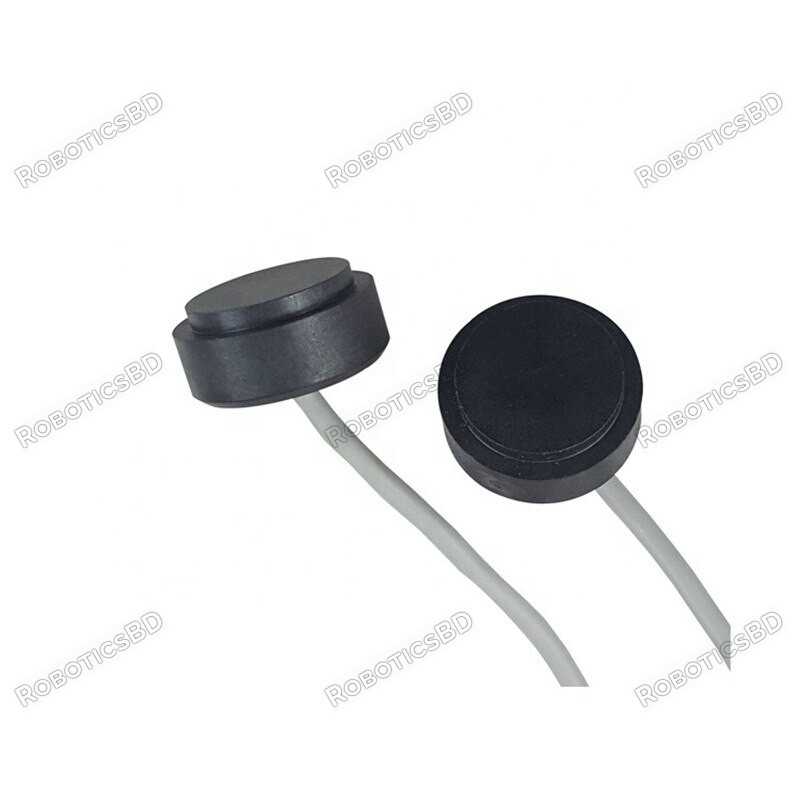

US1000-21A Integrated Ultrasonic Underwater Sensor

RBD-2169
  • US1000-21A ultrasonic flow sensor
  • ultrasonic heat meter sensor
  • Underwater Sensor
  • high-frequency ultrasonic sensor
  • Model: US1000-21A
  • High frequency type ultrasonic underwater sensor
  • Transceiver category
  • Nominal frequency: 1.0MHz ± 5%
  • Bandwidth: 200.0KHz

BDT 1,500
rating Read the review
Average rating: 2.5/5 - Number of reviews: 1
Quantity
Last items in stock

1 person has purchased this item
4 people recently added this item to the cart
Only 1 item left in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The US1000-21A Integrated Ultrasonic Underwater Sensor is a highly advanced and versatile transceiver designed for underwater applications. With its high-frequency capabilities and precise sensing technology, this sensor provides accurate and reliable performance in various underwater environments. Built with a durable PPS housing and rated with IP65 protection, it is capable of withstanding harsh conditions. Whether you need to measure distances, detect objects, or monitor liquid levels underwater, the US1000-21A is the perfect choice for your underwater sensing needs. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. High-frequency ultrasonic sensor designed for underwater applications.
  2. Transceiver category for both transmitting and receiving signals.
  3. Nominal frequency of 1.0MHz ± 5% for accurate and reliable measurements.
  4. Wide bandwidth of 200.0KHz for enhanced sensing capabilities.
  5. High sensitivity of -35dB min. for detecting even the faintest signals.
  6. Minimum parallel impedance of 150 ohms ± 30% for optimal signal transmission.
  7. Static capacitance of 1200Pf ± 20% for efficient energy transfer.
  8. Maximum input voltage of 300Vp-p for handling varying power levels.
  9. Direction angle of 8° ± 2° (-6dB) for precise detection in a focused area.
  10. Detection range of 0.1 ~ 5m (liquid reflection) for versatile underwater sensing applications.
  11. IP65 protection rating ensures resistance to dust and water ingress.
  12. Maximum pressure resistance of 1.6MPa for reliable performance in high-pressure environments.
  13. Wide operating temperature range of 0°C ~ +95°C for adaptability to different underwater conditions.
  14. Durable housing material made of PPS for long-lasting durability.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Underwater exploration: Ideal for robotics projects and scientific research requiring precise underwater detection.
  2. Marine navigation: Enables obstacle avoidance and underwater mapping for autonomous vehicles and boats.
  3. Aquaculture monitoring: Provides accurate distance measurement for monitoring fish tanks or water levels.
  4. Industrial applications: Suitable for underwater inspection, tank level monitoring, and quality control in manufacturing processes.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model US1000-21A
Product High frequency type
Category Transceiver
Nominal Frequency 1.0MHz ± 5%
Bandwidth 200.0KHz
Sensitivity -35dB min.
Minimum Parallel Impedance 150 ohms ± 30%
Static Capacitance 1200Pf ± 20%
Maximum Input Voltage 300Vp-p
Direction Angle 8° ± 2° (-6dB)
Detection Range 0.1 ~ 5m
Protection IP65
Maximum Pressure 1.6MPa
Operating Temperature 0°C ~ +95°C
Housing Material PPS
Shipment Weight 0.010 kg
Shipment Dimensions 7 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x US1000-21A Integrated Ultrasonic Underwater Sensor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of US1000-21A Integrated Ultrasonic Underwater Sensor in Bangladesh?

The latest price of US1000-21A Integrated Ultrasonic Underwater Sensor in Bangladesh is BDT 1,500 You can buy the US1000-21A Integrated Ultrasonic Underwater Sensor at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-2169
1 Item
Product
rating
19/09/2024
Umme Sadia
I bought the product bt there\'s nothing about how it works on internet. It has three wires.
