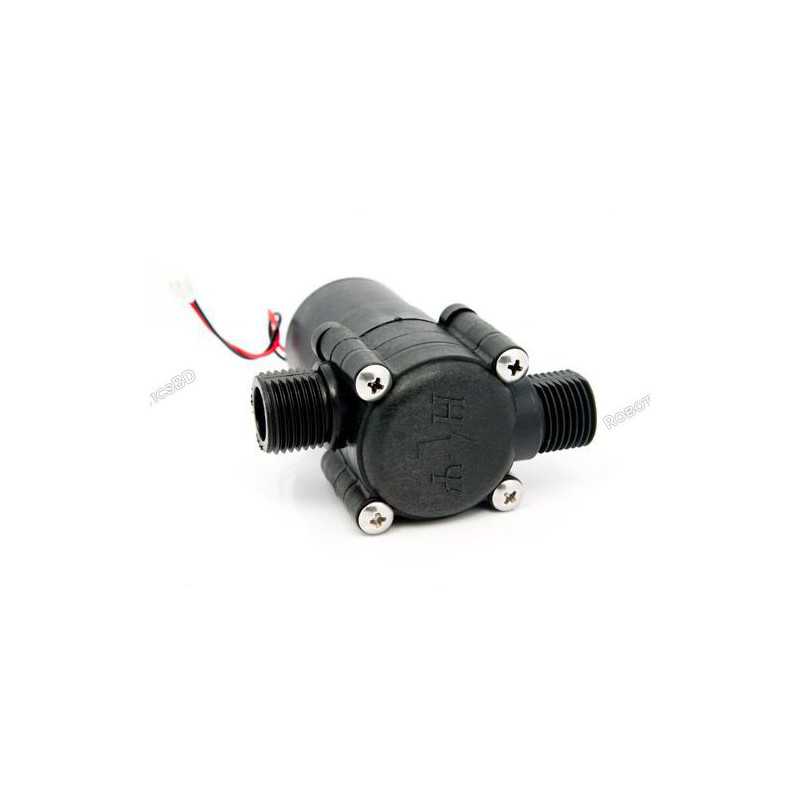

This G1/2 micro hydro generator provides you clean and renewable electricity. With the help of the regulator circuit inside, the output of this generator is stable at 3.6V. RoboticsBD
Time to replace the Li-po batteries in your waterside projects with the green and more accessible hydropower.
| General Specification | |
| Power Output: | 125mW (4LPM) |
| Max. Flow: | 20 L / Min ( 2KGF) |
| Water-resistance: | IP4 |
| High limited voltage: | 4.3VDC |
| Dimensions: | L 84.5 mm - W 64.5 mm - H 81 mm |
| Wire Length: | 84 mm |
| Jack Type: | JWT C2521 Terminal Plug |
| Connect Thread Gauge: | G 1/2" |
| Weight: | 165 ± 5g |
| Burst Pressure: | 20KGF |
| Normal Operation Temp. | 4 °C~80 °C |
| Max. Intermittent Operating Temp. | 110 °C max. 30 min |
| Generating Model: | NACuM Core (PAT NO.DE202006004800) |
| Shipment Weight | 0.165 kg |
| Shipment Dimensions | 10 × 10 × 6 cm |
1 x 3.6V Micro Hydro Generator
The latest price of 3.6V Micro Hydro Generator in Bangladesh is BDT 1,100 You can buy the 3.6V Micro Hydro Generator at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
Reference: RBD-0562
