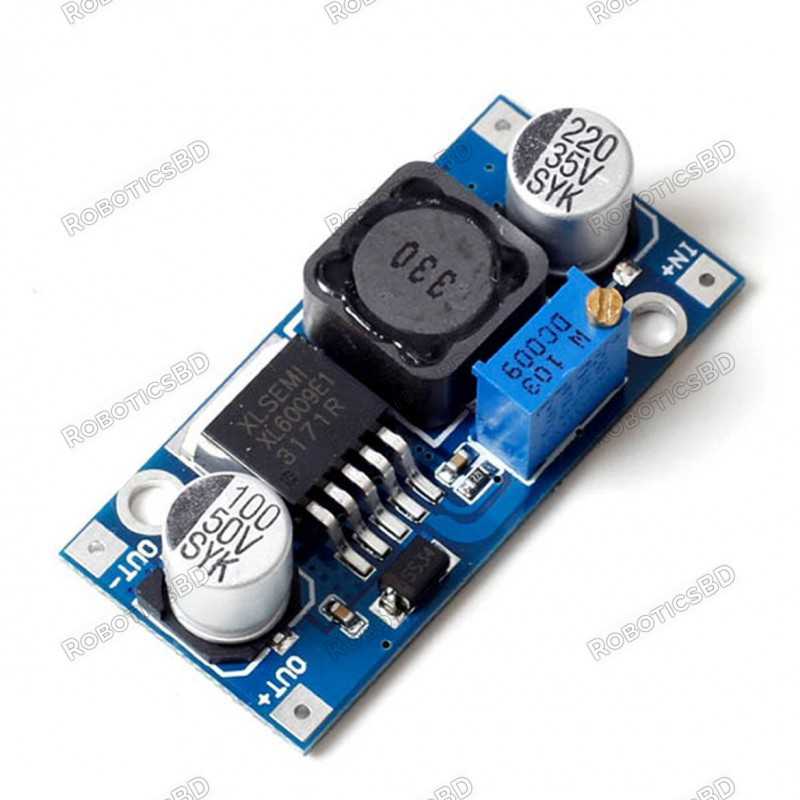

This CN6009 XL6009 DC – DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.
The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.
It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.
High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller
| General Specification | |
| Input Voltage (V) | 3 to 32 |
| Input Current(A) | 4 |
| Output Voltage(V) | 5 ~ 35 |
| Output Ripple(mV) | 50 |
| Efficiency | 0.94 |
| Switching Frequency(KHz) | 400 |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±0.5% |
| Length (mm) | 43 |
| Width (mm) | 20 |
| Height (mm) | 12 |
| Weight (gm) | 12 |
| Shipment Weight | 0.016 kg |
| Shipment Dimensions | 5 × 3 × 2 cm |
1 x DC-DC Boost Module
The latest price of DC-DC Boost Module in Bangladesh is BDT 130 You can buy the DC-DC Boost Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
