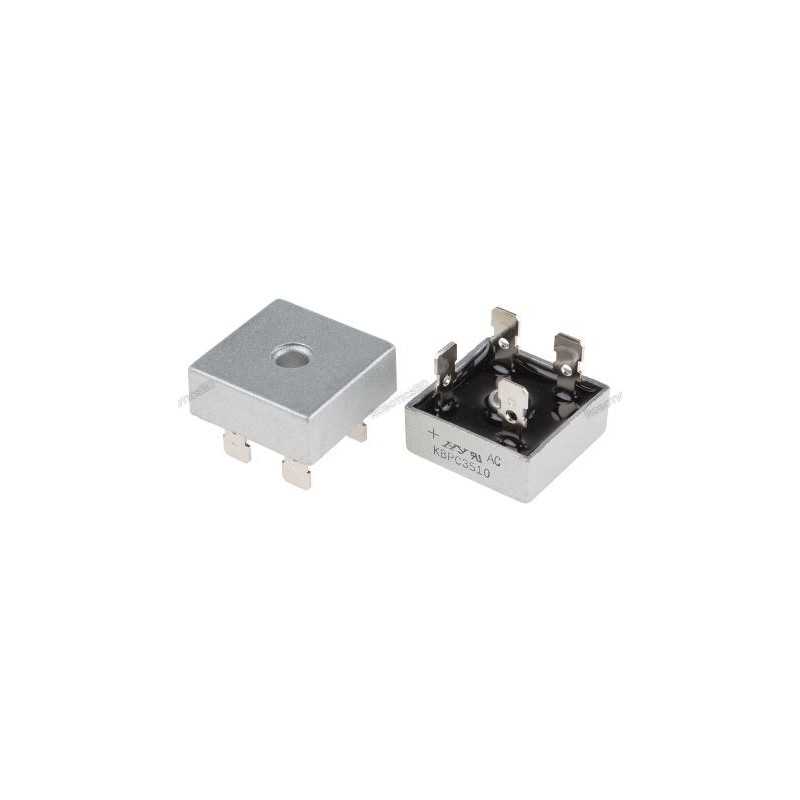

Bridge Rectifier, 35A 1000V, 4-Pin
RBD-1510
- Bridge Rectifier
- 35A 1000V, 4-Pin KBPC
-
Store Pickup Available!
-
Free Ship Over 5000 BDT
-
Quality Product
-
No Warranty
-
No Replacement
SINGLE-PHASE SILICON BRIDGE RECTIFIER
Applications:
- Metal case for Maximum Heat Dissipation
- Surge overload ratings-400 Amperes
- Low forward voltage drop
Features:
- Case: Metal, electrically isolated
- Epoxy: UL 94V-0 rate flame retardant
- Terminals: Plated .25"(6.35mm) Faston lugs, solderable per MIL-STD-202E, Method 208 guaranteed
- Polarity: As marked
- Mounting position: Any
- Weight: 30 grams
| General Specification | |
| Maximum Recurrent Peak Reverse Voltage VRRM | 1000 |
| Maximum RMS Bridge Input Voltage VRMS | 700 |
| Maximum Average Forward Rectified Output Current at Tc = 55o C IO | 1000 |
| Product Type | SINGLE-PHASE SILICON BRIDGE RECTIFIER |
| Operating Temperature Range (°C) | –55° C to +125° C |
| Mounting Type | Through Hole |
| Shipment Weight | 0.035 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Documentation:
Package Includes:
1 x Bridge Rectifier, 35A 1000V, 4-Pin
What is the price of Bridge Rectifier, 35A 1000V, 4-Pin in Bangladesh?
The latest price of Bridge Rectifier, 35A 1000V, 4-Pin in Bangladesh is BDT 50 You can buy the Bridge Rectifier, 35A 1000V, 4-Pin at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
