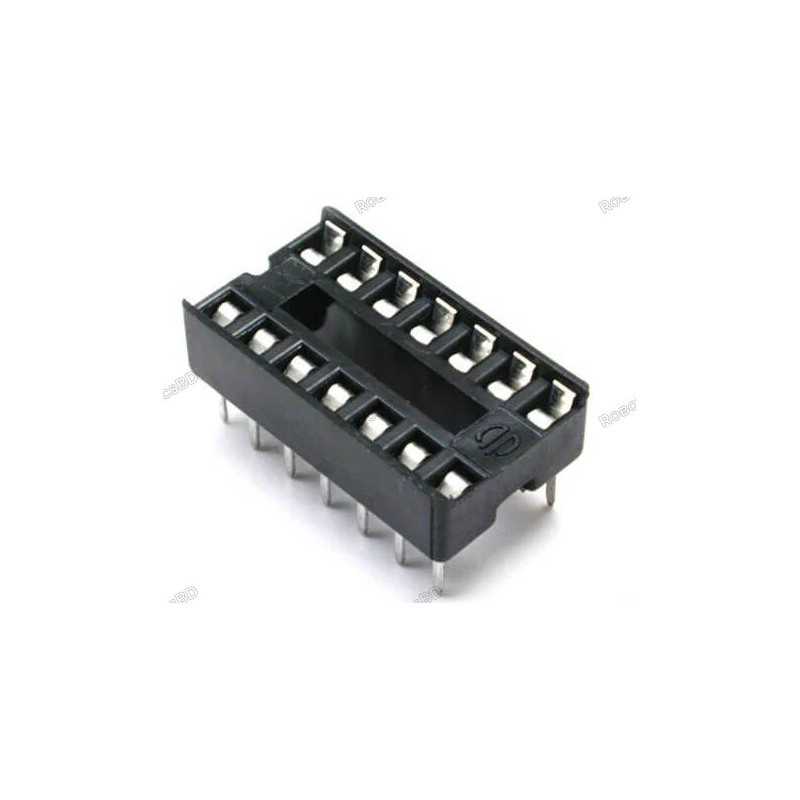

14 Pin DIP IC Base/Socket

RBD-1982
  • 14 pins.
  • JDEC compliant.
  • Molded notch for proper orientation.
  • Easy to insert and remove ICs.
BDT 5
rating Read the review
Average rating: 5/5 - Number of reviews: 1
Quantity
In-Stock

41 people have purchased this item in last 12 months
35 people recently added this item to the cart
302 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

14 Pin IC Socket base adaptor is a 14 pin IC holder, which can be soldered directly onto the PCB. The IC can be removed from this socket when required. The IC is placed on the socket at the time of use. This base acts as a removable IC holder. Featured By RoboticsBD.

The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Features:

  1. 14 pins.
  2. JDEC compliant.
  3. Molded notch for proper orientation.
  4. Easy to insert and remove ICs.

General Specification
Current Handling Capacity (A) 1
No. of Contact Points 14
Contact Material Phosphor Bronze
Contact Plating Tin
Operating Temperature Range (°C) -25 to 85
Flammability Rating UL94V-0
Color Black
Insertion Force 340g max per contact
Exertion Force 80g max per contact
Length (mm) 18
Width (mm) 10
Height (mm) 4
Weight (gm) 1 (approx) (each)
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

Package Included:

1 x 14 Pin DIP IC Socket Base Adaptor

What is the price of 14 Pin DIP IC Base/Socket in Bangladesh?

The latest price of 14 Pin DIP IC Base/Socket in Bangladesh is BDT 5 You can buy the 14 Pin DIP IC Base/Socket at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-1982
302 Items
c
rating
28/11/2022
Oyshi
good
