The 741 is a type of operational amplifier (Op-Amp), an integrated circuit that is commonly used as a voltage amplifier. It is a versatile device that has been widely used in many different applications, such as signal processing, audio amplification, and control systems. The 741 op-amp was introduced in the late 1960s and remains popular today due to its reliability and ease of use. It is available in a wide range of packages, including the DIP (dual in-line package) format, and is relatively inexpensive, making it an attractive choice for many different applications. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Application:
-
Amplification: 741 Op-Amp can be used as a non-inverting amplifier to amplify the input signal.
-
Comparator: 741 Op-Amp can be used as a comparator to compare two input voltages and produce a high or low output voltage based on the comparison result.
-
Integrator: 741 Op-Amp can be used as an integrator to integrate the input signal over time.
-
Differentiator: 741 Op-Amp can be used as a differentiator to differentiate the input signal to get its rate of change.
-
Oscillator: 741 Op-Amp can be used as a oscillator to generate a sinusoidal waveform by using the positive feedback.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Overload protection on the input and output
- No latch-up when the common-mode range is exceeded
- Applications: Audio, Communications & Networking, Signal Processing
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Package/Case |
PDIP-8 |
| Mounting Type |
Through Hole |
| Amplifier Type |
General Purpose Amplifier |
| Number of Channel |
1 |
| Output Current Per Channel |
25 mA |
| Input Bias Current (Ib) |
0.5 uA |
| Gain Bandwidth Product (GBP) |
1 MHz |
| Input Offset Voltage (Vos) |
6 mV |
| Slew Rate (SR) |
0.5 V/us |
| CMRR (dB) |
70 |
| Voltage Gain (dB) |
106.02 |
| Technology |
Bipolar |
| Max Dual Supply Voltage |
±18 V |
| Min Dual Supply Voltage (V) |
± 5 |
| Max. Operating Current (mA) |
2.8 |
| Operating Temperature Range (°C) |
0 to 70 |
| Dimensions (mm) LxWxH |
9.27 x 6.35 x 3.3 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:

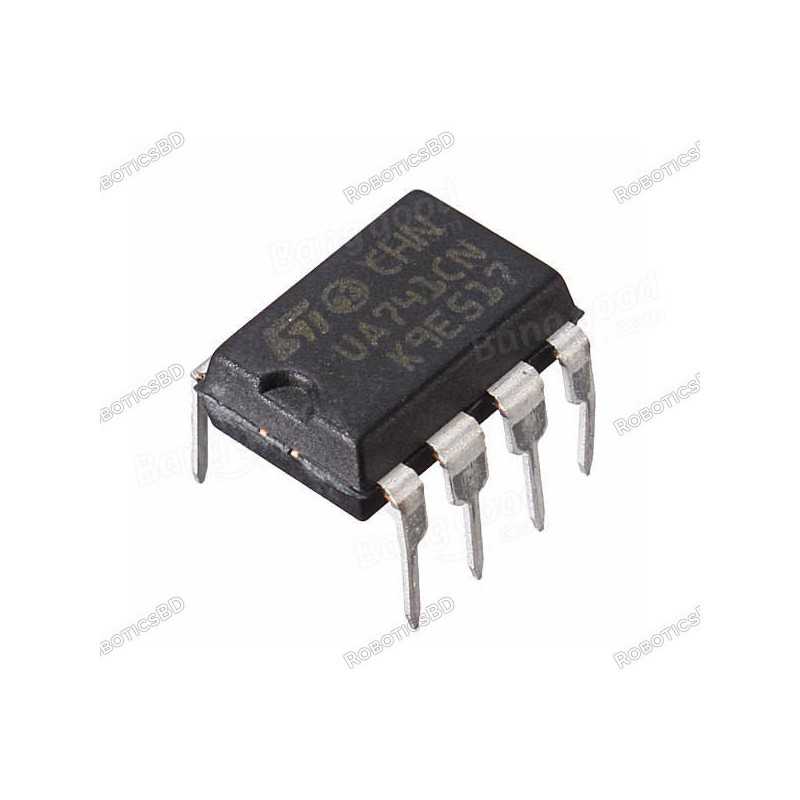

1 x LM741CN PDIP-8 Operational Amplifier IC (Pack of 3)
