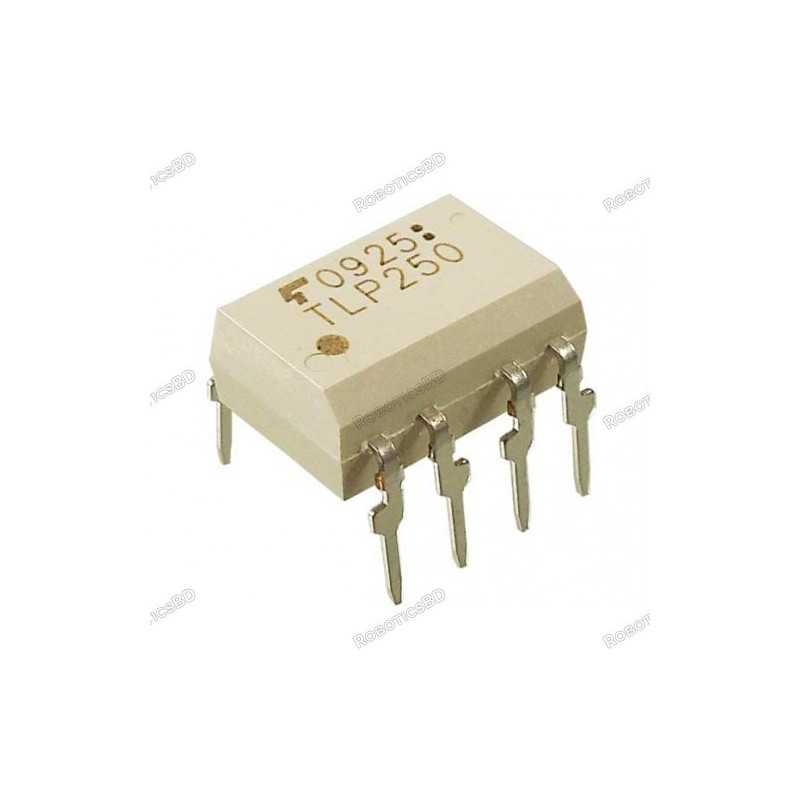

TLP250 Optocoupler

RBD-1442
  • IC Name: TLP250
  • Package/Case: DIP-8
BDT 80
rating Read the 3 reviews
Average rating: 5/5 - Number of reviews: 3
Quantity
In-Stock

21 people have purchased this item in last 12 months
56 people recently added this item to the cart
24 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The TOSHIBA TLP250 consists of an infrared emitting diode and a integrated photodetector.

This unit is 8-lead DIP package. RoboticsBD

TLP250 is suitable for gate driving circuit of IGBT or power MOSFET. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Input threshold current: 5mA(max)
  2. Supply current : 11mA(max)
  3. Supply voltage : 10-35V
  4. Output current : ±1.5A (max)
  5. Switching time tpLH/tpHL): 0.5μs(max)
  6. Isolation voltage: 2500Vrms(min)
  7. UL-recognized: UL 1577, File No.E67349
  8. cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349
  9. VDE-Approved: EN 60747-5- 5 (Note 1) Note 1: When a VDE approved type is needed, please designate the Option(D4).

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-8
Minimum Supply Voltage (V) 24
Maximum Supply Voltage (V) 35
Product Type Power MOS FET Gate Drive
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x TLP250 Optocoupler.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of TLP250 Optocoupler in Bangladesh?

The latest price of TLP250 Optocoupler in Bangladesh is BDT 80 You can buy the TLP250 Optocoupler at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-1442
24 Items
Condition
rating
31/07/2023
Engr safiq kamal
Damage
Great customer support!
rating
19/02/2022
Asif H.
Fast shipping!
very good
rating
01/10/2021
Didarul islam
IPS UPS এর জন্য পারফেক্ট কাজ করে। খুবই ভাল । যে কেউ নিশ্চিন্তে নিতে পারেন
